Y. pestis biovar microtus strain 201, an avirulent strain to humans, was used as the derivative (wild type, WT)[31]. Nonpolar ryhB1, ryhB2, and fur single-gene deletion mutants derived from the WT strain, termed ΔryhB1, ΔryhB2, and Δfur, respectively, were constructed previously using the λ-Red homologous recombination method[21, 29, 32]. Briefly, the entire coding regions of fur, ryhB1, and ryhB2 were replaced with the kanamycin resistance cassette using the one-step inactivation method based on the lambda Red phage recombination system with the helper plasmid pKD46, which can express the highly efficient Red homologous recombination system. The polymerase chain reaction (PCR) fragment carrying the kanamycin resistance cassette flanked by regions homologous to the fur, ryhB1, or ryhB2 genes was introduced into the WT strain. The mutant strains were selected due to their kanamycin resistance and were verified by PCR and DNA sequencing.
For complementation of the mutants[21], a PCR-generated DNA fragment comprising the corresponding coding region and transcriptional terminator was cloned into the pBAD33 vector, harboring a chloramphenicol resistance gene. Each recombinant plasmid was introduced into the corresponding mutant, yielding the complementation strain (termed C-ΔryhB1, C-ΔryhB2, and C-Δfur, respectively). All the primers used in this study are listed in Table 1.
Table 1. Oligonucleotide primers used in this study
Target Primers (forward/reverse, 5’-3’) Construction of mutants fur CAGCCTTAATTTGAATCGATTGTAACAGGACTGAATCCGCTGTAACGCACTGAGAAGC/
GTGCTTAAAATCTTTATAAGAGTAATGCGATAAAACGATAAGATTGCAGCATTACACGryhB1 CATATTCCCCCTGAGTCAAAT/CGTGTAATGCTGCAATCTGGCAATGATAATCATTATCAC GCTTCTCAGTGCGTTACATTTGCCTTTTTCTCACCCCGTTC/GGTAAATCAACTTAATCCGAGAG ryhB2 GGCGTAAACCAGTCGGTAGTCT/CGTGTAATGCTGCAATCTAAAATGATAATACTTATCAATAT GCTTCTCAGTGCGTTACAGTGCCCAGAAAACCCCCAGC/TTCCGGTGAGTGAGTACAGC Complementation of the mutants ryhB1 CACGAATTCTGCTTTCAGATGAGCGCATCAAAAGTTTAGGTG/TTGAAGCTTAAAAAAGCCAGCACCCGGCTGGCTAAGTAAAC ryhB2 CACGAATLTCTGCGATTCAGAACAAGGCAGGCAGTCTTTGG/TTGAAGCTTAAAAAAGCCAGCACCCGAGCTGGCTTAAAATAC Protein expression fur GCGGGATCCATGACTGACAACAACAAAG/GCGAAGCTTTTATCTTTTACTGTGTGCAGA Primer extension fur /CCAAATGAAAACGGTGGTTG ryhB1 /CCGGCTGGCTAAGTAAACAC ryhB2 /GCTTTACTGAACCCCCAGCC hmsT /GGTATTTATTCCGACATCACGAC hmsH /TATTGTTGCAAAGTCATTATAGGAT EMSA ryhB1 ATCCCAGGACAGGTTCTCTC/CCGGCTGGCTAAGTAAACAC ryhB2 GCACCGCCTGATTATTCATCG/CACCCGAGCTGGCTTAAAATAC fur CTGAGTATTTCTGTGATGCGATG/CTGACGTGGTGACACGCAGG DNase I footprinting ryhB1 ATCCCAGGACAGGTTCTCTC/CCGGCTGGCTAAGTAAACAC ryhB2 GCACCGCCTGATTATTCATCG/CACCCGAGCTGGCTTAAAATAC Unless stated otherwise, Y. pestis was cultivated in Luria-Bertani (LB) broth (1% tryptone, 0.5% yeast extract, and 1% NaCl) or on LB agar plates[21]. Briefly, a single colony was inoculated on an LB agar plate an incubated for 1–2 d. The resultant bacterial cells were washed into LB broth to attain an OD620 of approximately 1.5, and the resulting broth culture was stored in the presence of 30% glycerol at −80 °C. Thereafter, 200 μL of bacterial glycerol stocks were inoculated into 18 mL of fresh LB broth and allowed to grow with shaking at 230 rpm to an OD620 of approximately 0.4 prior to bacterial collection. When appropriate, the culture medium was supplemented with 34 μg/mL chloramphenicol.
-

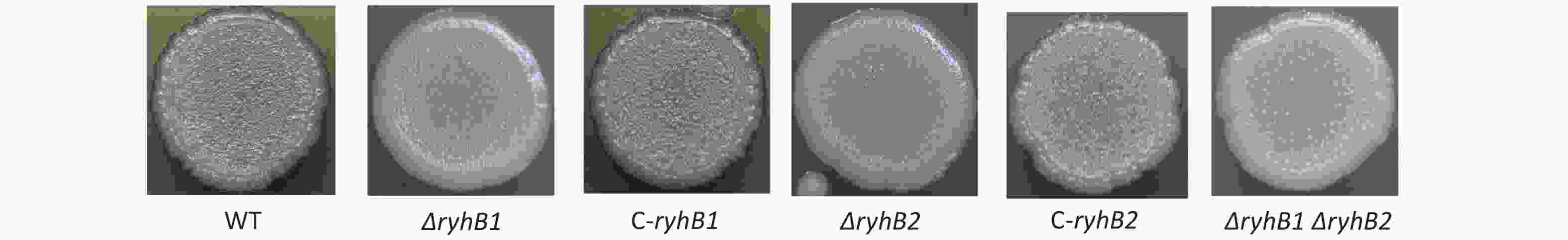

The colony morphology assay was performed as previously described[21]. Briefly, aliquots of 5 μL of bacterial glycerol stocks were spotted on an LB plate, followed by incubation for approximately 7 days. Thereafter, the surface morphology of each colony was recorded photographically.
-
The primer extension assay was performed essentially as previously described[21]. Briefly, total bacterial RNAs were extracted using TRIzol Reagent (Invitrogen), and then approximately 8 µg of total RNA was annealed with 1 pmol of 5′-32P-labeled reverse primer to generate cDNAs using the Primer Extension System (Promega) according to the manufacturer's instructions. The same labeled primer was used for sequencing with the AccuPower & Top DNA Sequencing Kit (Bioneer, Korea). The products of primer extension and sequencing were then analyzed by 6% polyacrylamide gel electrophoresis/8 M urea, and the results were detected by autoradiography using a Fuji Medical X-ray film.
-
The entire coding region of fur was amplified, purified, and cloned into the pET28a vector (Novagen, USA), which was then verified by DNA sequencing. Escherichia coli BL21λDE3 were transformed with the recombinant plasmid encoding the His-Fur protein. Expression and purification of His-Fur protein was carried out as previously described[21]. The purified His-Fur protein was concentrated to a final concentration of approximately 0.2 mg/mL in storage buffer (phosphate-buffered saline, pH 7.5, 20% glycerol). The purity of the His-Fur protein was confirmed by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE). The purified protein was stored at −80 °C.
-
For the EMSA[21, 33], the 5′-ends of the regulatory DNA regions of each target gene were labeled with [γ-32P]-ATP. EMSA was performed in a 10 μL reaction volume containing binding buffer [100 mmol/L MnCl2, 1 mmol/L MgCl2, 0.5 mmol/L DTT, 50 mmol/L KCl, 10 mmol/L Tris-HCl (pH 7.5), 0.05 mg/mL sheared salmon sperm DNA, 0.05 mg/mL BSA, and 4% glycerol], labeled DNA probe (1,000–2,000 CPM/μL), and increasing quantities of His-Fur. Three controls were included: (1) cold probe as a specific DNA competitor (corresponding regulatory DNA region unlabeled), (2) negative probe as a nonspecific DNA competitor (the unlabeled coding region of 16S rRNA), and (3) nonspecific protein competitor (rabbit anti-F1-protein polyclonal antibodies). The binding products were analyzed in a native 4% (w/v) polyacrylamide gel, and the results were detected by autoradiography after exposure to Fuji Medical X-ray film.
-
For the DNase I footprinting assay[21, 33], the promoter-proximal DNA regions of each target gene with a single 32P-labeled end were generated by PCR and purified using QiaQuick columns (Qiagen, Germany). DNA binding was performed in a 10 μL reaction volume containing the same binding buffer as for EMSA, labeled DNA fragment (2–5 pmol), and increasing quantities of His-Fur and incubated at room temperature for 30 min. Prior to digestion, 10 μL of Ca2+/Mg2+ solution (5 mmol/L CaCl2 and 10 mmol/L MgCl2) was added to each reaction and incubated for 1 min at room temperature. Then, the optimized RQ1 RNase-Free DNase I (Promega) was added to each reaction mixture and then incubated at room temperature for 30–90 s. The cleavage reaction was quenched by adding 9 μL of stop solution (200 mmol/L NaCl, 30 mmol/L EDTA, and 1% SDS), followed by incubation for 1 min at room temperature. The partially digested DNA samples were extracted with phenol/chloroform, precipitated with ethanol, and analyzed on a 6% polyacrylamide/8 mol/L urea gel. Protected regions were identified by comparison with DNA sequencing size markers. The results were detected by autoradiography after exposure to Fuji Medical X-ray film.
doi: 10.3967/bes2021.039
Reciprocal Regulation between Fur and Two RyhB Homologs in Yersinia pestis, and Roles of RyhBs in Biofilm Formation
-
Abstract:
Objective To investigate reciprocal regulation between Fur and two RyhB homologs in Yersinia pestis (Y. pestis), as well as the roles of RyhBs in biofilm formation. Methods Regulatory relationships were assessed by a combination of colony morphology assay, primer extension, electrophoretic mobility shift assay and DNase I footprinting. Results Fur bound to the promoter-proximal DNA regions of ryhB1 and ryhB2 to repress their transcription, while both RyhB1 and RyhB2 repressed the expression of Fur at the post-transcriptional level. In addition, both RyhB1 and RyhB2 positively regulated Y. pestis biofilm exopolysaccharide (EPS) production and the expression of hmsHFRS and hmsT. Conclusion Fur and the two RyhB homologs exert negative reciprocal regulation, and RyhB homologs have a positive regulatory effect on biofilm formation in Y. pestis. -
Key words:
- Yersinia pestis /
- RyhB /
- Fur /
- Biofilm
注释: -

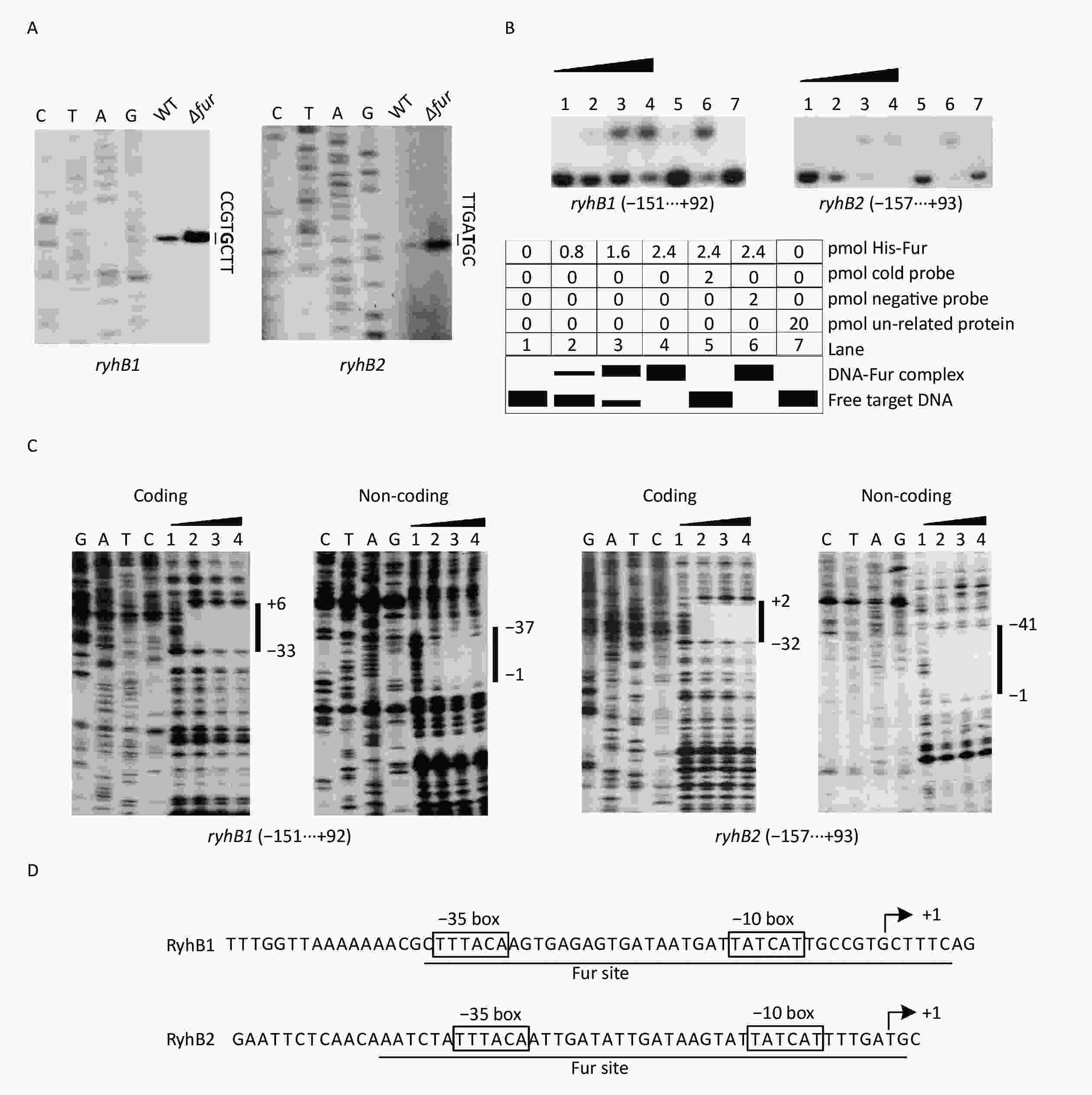

Figure 1. Regulation of ryhB1 and ryhB2 by Fur. Bacterial cells were harvested at an OD600 value of approximately 0.4 to investigate Fur-mediated ryhB1 and ryhB2 transcription. The negative and positive numbers represent the nucleotide positions upstream and downstream of each target gene. (A) Primer extension. An oligonucleotide primer was designed to be complementary to the RNA transcript of each target gene. The primer extension products were analyzed using an 8 mol/L urea-6% acrylamide sequencing gel. The underlined bases were transcription start sites. (B) EMSA. The radioactively labeled promoter-proximal DNA fragments of each target gene were incubated with increasing amounts of His-Fur and then subjected to 4% (w/v) polyacrylamide gel electrophoresis. The EMSA design is shown below. (C) DNase I footprinting. Lanes G, A, T, and C represent the Sanger sequencing reactions. Labeled coding or noncoding DNA probes were incubated with increasing amounts of purified His-Fur (Lanes 1, 2, 3, and 4 contained 0, 5, 10, and 15 pmol, respectively), and were subjected to DNase I footprinting. The protected regions are indicated with vertical bars with the corresponding sequence positions. (D) Structural organization of the RyhBs promoters. Transcription start sites are marked with bent arrows. The −10 and −35 boxes are enclosed in boxes. The Fur sites are underlined with solid lines.

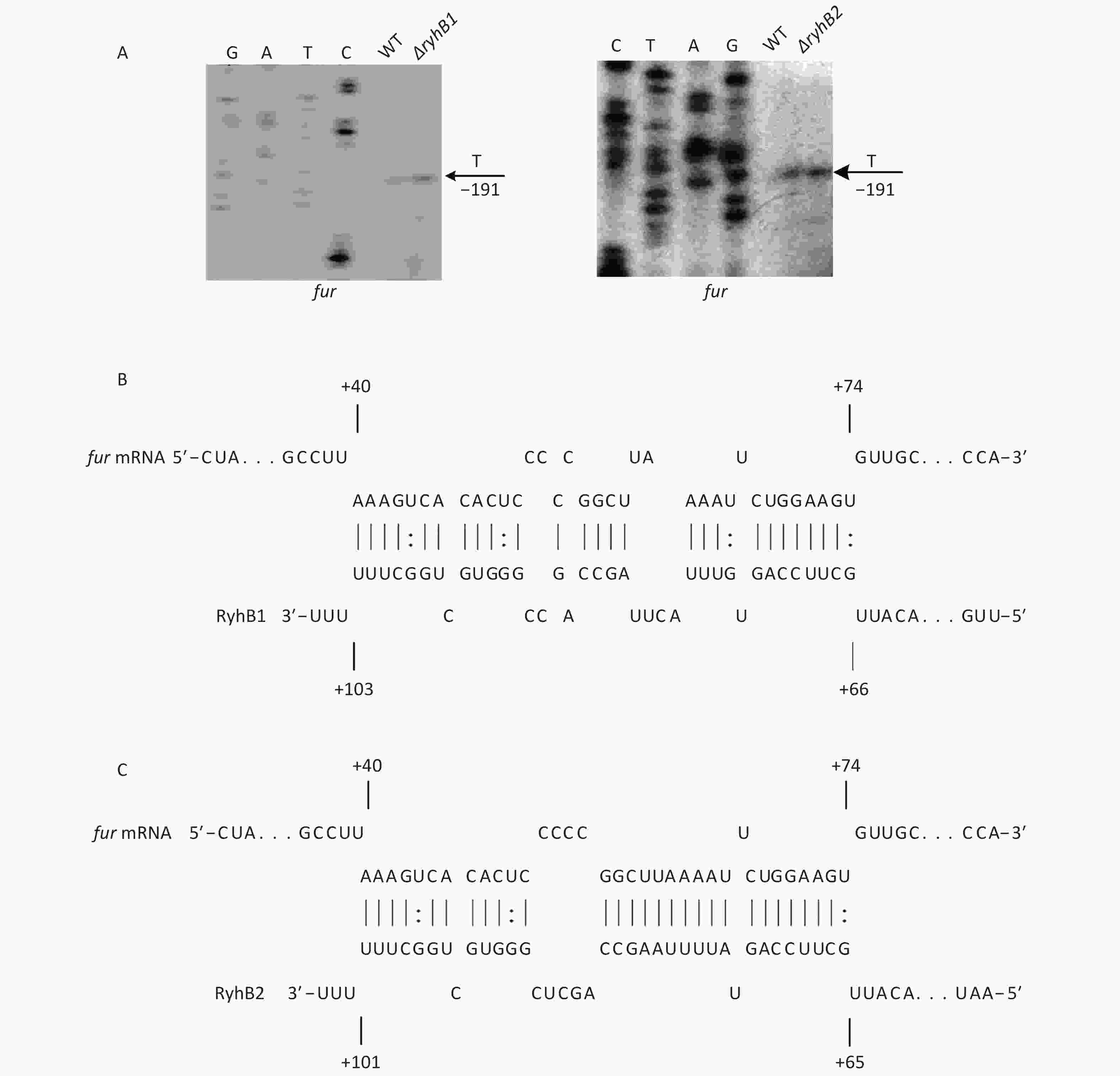

Figure 2. Regulation of fur by RyhB1 and RyhB2. (A) Primer extension was carried out as described in Figure 1. The transcription start site is indicated with arrows, with the corresponding nucleotide and sequence positions. (B and C) RyhB1 and RyhB2 exhibited complementarity with the coding region of fur mRNA. Complementary nucleotides are marked with vertical lines. The numbers flanking the fur or ryhB mRNA sequence refer to the nucleotide positions relative to the translation or transcription start sites (+1).

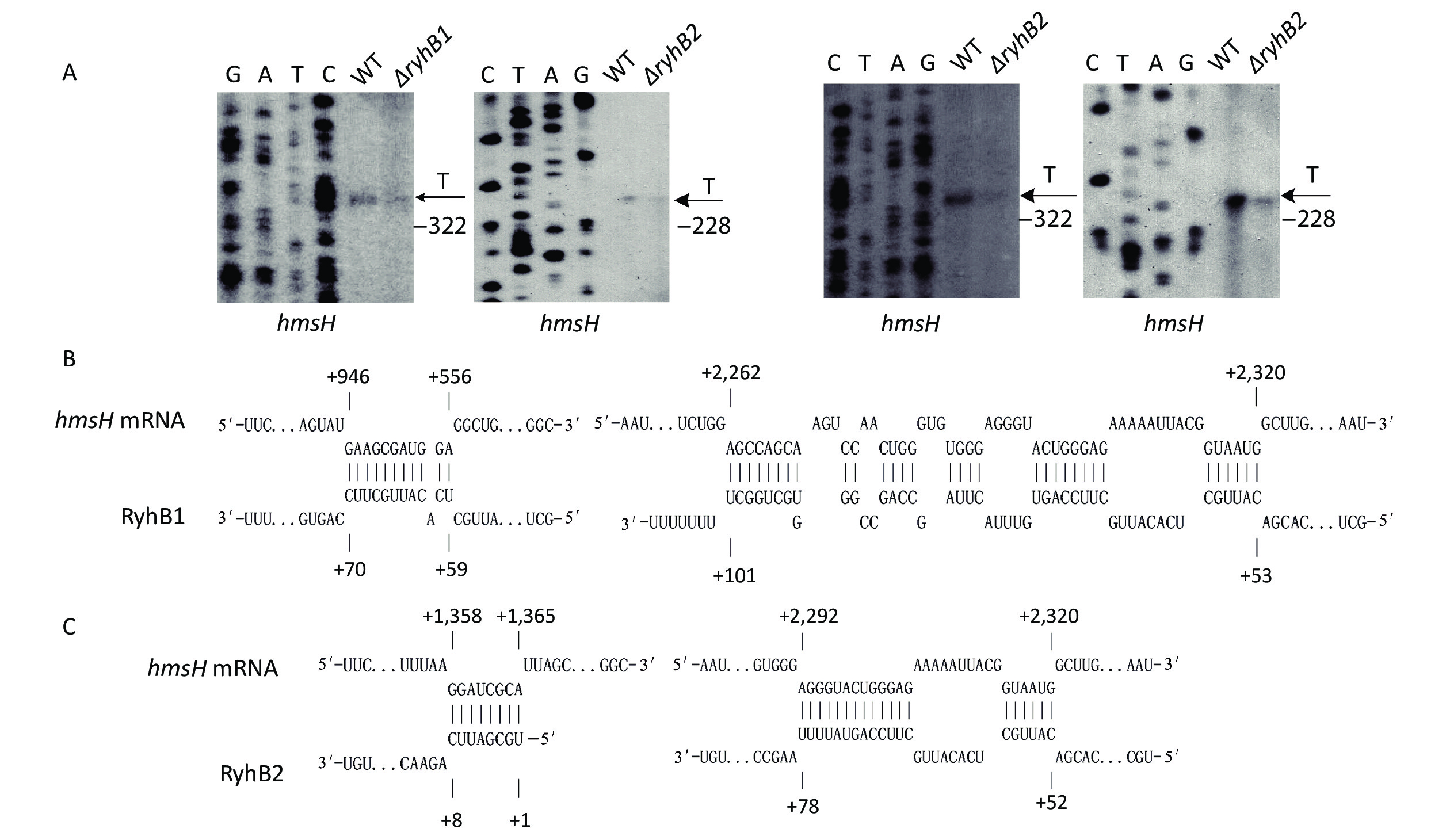

Figure 4. Regulation of hmsHFRS by RyhB1 and RyhB2. (A) Primer extension was carried out as described in Figure 1. The transcription start site is indicated with arrows, with the corresponding nucleotide and sequence position. (B and C) RyhB1 and RyhB2 exhibited complementarity with the coding region of hmsH mRNA. Complementary nucleotides are marked with vertical lines. The numbers flanking the hmsH or ryhB mRNA sequence refer to the nucleotide positions relative to the translation or transcription start sites (+1).

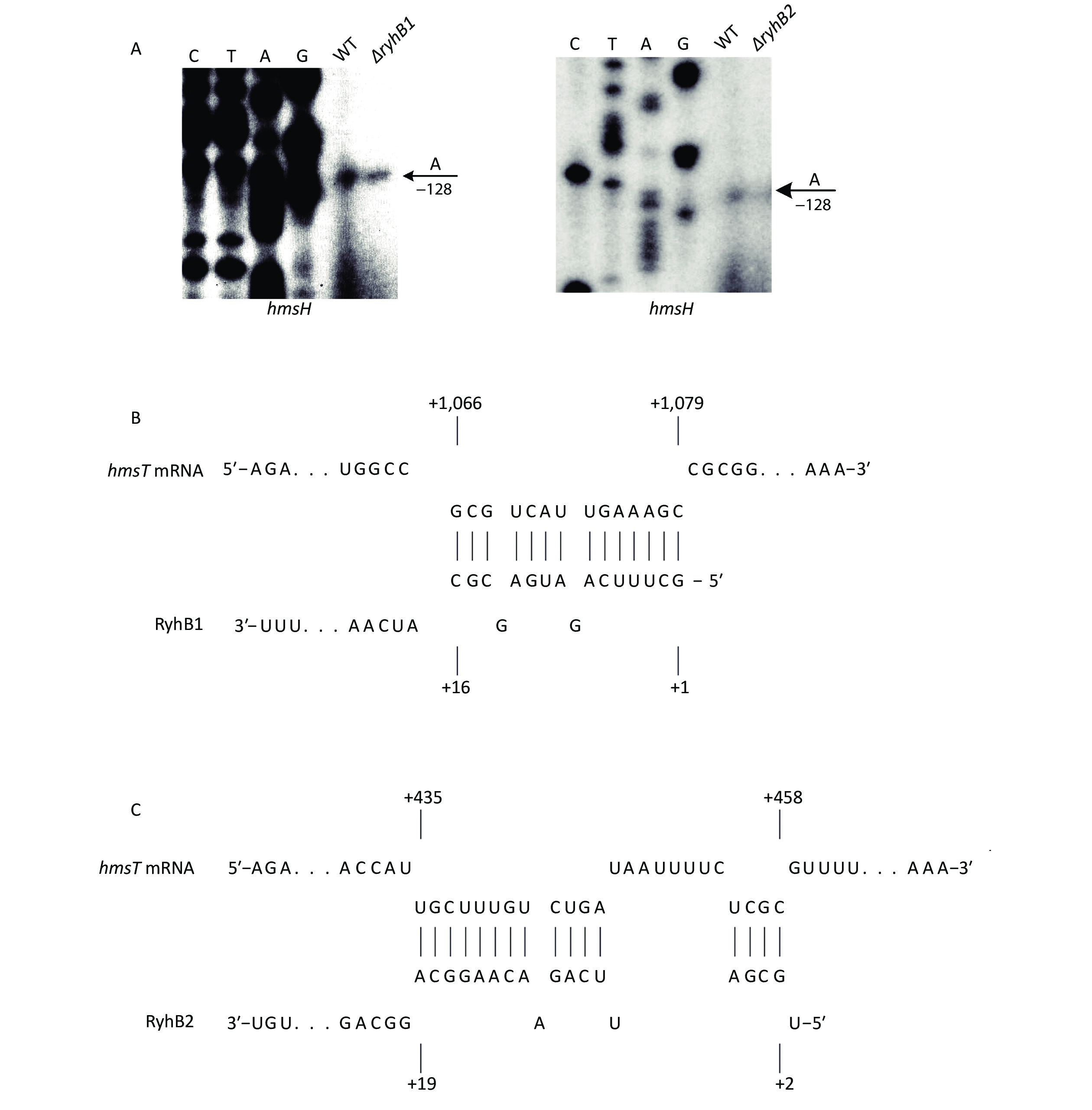

Figure 5. Regulation of hmsT by RyhB1 and RyhB2. (A) Primer extension was carried out as described in Figure 1. The transcription start site is indicated with arrows, with the corresponding nucleotide and sequence position. (B and C) RyhB1 and RyhB2 exhibited complementarity with the coding region of hmsT mRNA. Complementary nucleotides are marked with vertical lines. The numbers flanking the hmsT or ryhB mRNA sequence refer to the nucleotide positions relative to the translation or transcription start sites (+1).
Table 1. Oligonucleotide primers used in this study
Target Primers (forward/reverse, 5’-3’) Construction of mutants fur CAGCCTTAATTTGAATCGATTGTAACAGGACTGAATCCGCTGTAACGCACTGAGAAGC/
GTGCTTAAAATCTTTATAAGAGTAATGCGATAAAACGATAAGATTGCAGCATTACACGryhB1 CATATTCCCCCTGAGTCAAAT/CGTGTAATGCTGCAATCTGGCAATGATAATCATTATCAC GCTTCTCAGTGCGTTACATTTGCCTTTTTCTCACCCCGTTC/GGTAAATCAACTTAATCCGAGAG ryhB2 GGCGTAAACCAGTCGGTAGTCT/CGTGTAATGCTGCAATCTAAAATGATAATACTTATCAATAT GCTTCTCAGTGCGTTACAGTGCCCAGAAAACCCCCAGC/TTCCGGTGAGTGAGTACAGC Complementation of the mutants ryhB1 CACGAATTCTGCTTTCAGATGAGCGCATCAAAAGTTTAGGTG/TTGAAGCTTAAAAAAGCCAGCACCCGGCTGGCTAAGTAAAC ryhB2 CACGAATLTCTGCGATTCAGAACAAGGCAGGCAGTCTTTGG/TTGAAGCTTAAAAAAGCCAGCACCCGAGCTGGCTTAAAATAC Protein expression fur GCGGGATCCATGACTGACAACAACAAAG/GCGAAGCTTTTATCTTTTACTGTGTGCAGA Primer extension fur /CCAAATGAAAACGGTGGTTG ryhB1 /CCGGCTGGCTAAGTAAACAC ryhB2 /GCTTTACTGAACCCCCAGCC hmsT /GGTATTTATTCCGACATCACGAC hmsH /TATTGTTGCAAAGTCATTATAGGAT EMSA ryhB1 ATCCCAGGACAGGTTCTCTC/CCGGCTGGCTAAGTAAACAC ryhB2 GCACCGCCTGATTATTCATCG/CACCCGAGCTGGCTTAAAATAC fur CTGAGTATTTCTGTGATGCGATG/CTGACGTGGTGACACGCAGG DNase I footprinting ryhB1 ATCCCAGGACAGGTTCTCTC/CCGGCTGGCTAAGTAAACAC ryhB2 GCACCGCCTGATTATTCATCG/CACCCGAGCTGGCTTAAAATAC -
[1] Perry RD, Fetherston JD. Yersinia pestis--etiologic agent of plague. Clin Microbiol Rev, 1997; 10, 35−66. doi: 10.1128/CMR.10.1.35 [2] Chouikha I, Hinnebusch BJ. Yersinia--flea interactions and the evolution of the arthropod-borne transmission route of plague. Curr Opin Microbiol, 2012; 15, 239−46. doi: 10.1016/j.mib.2012.02.003 [3] Darby C. Uniquely insidious: Yersinia pestis biofilms. Trends Microbiol, 2008; 16, 158−64. doi: 10.1016/j.tim.2008.01.005 [4] Zhou D, Yang R. Formation and regulation of Yersinia biofilms. Protein Cell, 2011; 2, 173−9. doi: 10.1007/s13238-011-1024-3 [5] Abu Khweek A, Fetherston JD, Perry RD. Analysis of HmsH and its role in plague biofilm formation. Microbiology, 2010; 156, 1424−38. doi: 10.1099/mic.0.036640-0 [6] Bobrov AG, Kirillina O, Forman S, et al. Insights into Yersinia pestis biofilm development: topology and co-interaction of Hms inner membrane proteins involved in exopolysaccharide production. Environ Microbiol, 2008; 10, 1419−32. doi: 10.1111/j.1462-2920.2007.01554.x [7] Fang N, Qu S, Yang H, et al. HmsB enhances biofilm formation in Yersinia pestis. Front Microbiol, 2014; 5, 685. [8] Hinnebusch BJ, Perry RD, Schwan TG. Role of the Yersinia pestis hemin storage (hms) locus in the transmission of plague by fleas. Science, 1996; 273, 367−70. doi: 10.1126/science.273.5273.367 [9] Liu Z, Gao X, Wang H, et al. Plasmid pPCP1-derived sRNA HmsA promotes biofilm formation of Yersinia pestis. BMC Microbiol, 2016; 16, 176. doi: 10.1186/s12866-016-0793-5 [10] Jenal U, Reinders A, Lori C. Cyclic di-GMP: second messenger extraordinaire. Nat Rev Microbiol, 2017; 15, 271−84. doi: 10.1038/nrmicro.2016.190 [11] Valentini M, Filloux A. Biofilms and Cyclic di-GMP (c-di-GMP) Signaling: Lessons from Pseudomonas aeruginosa and Other Bacteria. J Biol Chem, 2016; 291, 12547−55. doi: 10.1074/jbc.R115.711507 [12] Sun YC, Koumoutsi A, Jarrett C, et al. Differential control of Yersinia pestis biofilm formation in vitro and in the flea vector by two c-di-GMP diguanylate cyclases. PLoS One, 2011; 6, e19267. doi: 10.1371/journal.pone.0019267 [13] Bobrov AG, Kirillina O, Ryjenkov DA, et al. Systematic analysis of cyclic di-GMP signalling enzymes and their role in biofilm formation and virulence in Yersinia pestis. Mol Microbiol, 2011; 79, 533−51. doi: 10.1111/j.1365-2958.2010.07470.x [14] Bobrov AG, Kirillina O, Perry RD. The phosphodiesterase activity of the HmsP EAL domain is required for negative regulation of biofilm formation in Yersinia pestis. FEMS Microbiol Lett, 2005; 247, 123−30. doi: 10.1016/j.femsle.2005.04.036 [15] Liu L, Fang H, Yang H, et al. CRP is an activator of Yersinia pestis biofilm formation that operates via a mechanism involving gmhA and waaAE-coaD. Front Microbiol, 2016; 7, 295. [16] Willias SP, Chauhan S, Lo CC, et al. CRP-mediated carbon catabolite regulation of Yersinia pestis biofilm formation is enhanced by the carbon storage regulator protein, CsrA. PLoS One, 2015; 10, e0135481. doi: 10.1371/journal.pone.0135481 [17] Liu L, Fang H, Yang H, et al. Reciprocal regulation of Yersinia pestis biofilm formation and virulence by RovM and RovA. Open Biol, 2016; 6. [18] Tam C, Demke O, Hermanas T, et al. YfbA, a Yersinia pestis regulator required for colonization and biofilm formation in the gut of cat fleas. J Bacteriol, 2014; 196, 1165−73. doi: 10.1128/JB.01187-13 [19] Fang H, Liu L, Zhang Y, et al. BfvR, an AraC-family regulator, controls biofilm formation and pH6 antigen production in opposite ways in Yersinia pestis biovar microtus. Front Cell Infect Microbiol, 2018; 8, 347. doi: 10.3389/fcimb.2018.00347 [20] Fang N, Yang H, Fang H, et al. RcsAB is a major repressor of Yersinia biofilm development through directly acting on hmsCDE, hmsT, and hmsHFRS. Sci Rep, 2015; 5, 9566. doi: 10.1038/srep09566 [21] Sun F, Gao H, Zhang Y, et al. Fur is a repressor of biofilm formation in Yersinia pestis. PLoS One, 2012; 7, e52392. doi: 10.1371/journal.pone.0052392 [22] Han Y, Liu L, Fang N, et al. Regulation of pathogenicity by noncoding RNAs in bacteria. Future Microbiol, 2013; 8, 579−91. doi: 10.2217/fmb.13.20 [23] Qu Y, Bi L, Ji X, et al. Identification by cDNA cloning of abundant sRNAs in a human-avirulent Yersinia pestis strain grown under five different growth conditions. Future Microbiol, 2012; 7, 535−47. doi: 10.2217/fmb.12.13 [24] Beauregard A, Smith EA, Petrone BL, et al. Identification and characterization of small RNAs in Yersinia pestis. RNA Biol, 2013; 10, 397−405. doi: 10.4161/rna.23590 [25] Yan Y, Su S, Meng X, et al. Determination of sRNA expressions by RNA-seq in Yersinia pestis grown in vitro and during infection. PLoS One, 2013; 8, e74495. doi: 10.1371/journal.pone.0074495 [26] Schiano CA, Koo JT, Schipma MJ, et al. Genome-wide analysis of small RNAs expressed by Yersinia pestis identifies a regulator of the Yop-Ysc type III secretion system. J Bacteriol, 2014; 196, 1659−70. doi: 10.1128/JB.01456-13 [27] Porcheron G, Dozois CM. Interplay between iron homeostasis and virulence: Fur and RyhB as major regulators of bacterial pathogenicity. Vet Microbiol, 2015; 179, 2−14. doi: 10.1016/j.vetmic.2015.03.024 [28] Perez-Reytor D, Plaza N, Espejo RT, et al. Role of non-coding regulatory RNA in the virulence of human pathogenic Vibrios. Front Microbiol, 2016; 7, 2160. [29] Deng Z, Meng X, Su S, et al. Two sRNA RyhB homologs from Yersinia pestis biovar microtus expressed in vivo have differential Hfq-dependent stability. Res Microbiol, 2012; 163, 413−8. doi: 10.1016/j.resmic.2012.05.006 [30] Deng Z, Liu Z, Bi Y, et al. Rapid degradation of Hfq-free RyhB in Yersinia pestis by PNPase independent of putative ribonucleolytic complexes. Biomed Res Int, 2014; 2014, 798918. [31] Zhou D, Tong Z, Song Y, et al. Genetics of metabolic variations between Yersinia pestis biovars and the proposal of a new biovar, microtus. J Bacteriol, 2004; 186, 5147−52. doi: 10.1128/JB.186.15.5147-5152.2004 [32] Wang R, Liu R, Li Z, et al. Two-step PCR mediated Red recombination technique for rapid deletion of Yersinia pestis sRNA and large fragment chromosome. Acta Microbiologica Sinica, 2017; 57, 1126−37. [33] Zhang Y, Hu L, Qiu Y, et al. QsvR integrates into quorum sensing circuit to control Vibrio parahaemolyticus virulence. Environ Microbiol, 2019; 21, 1054−67. doi: 10.1111/1462-2920.14524 [34] Pfeiffer V, Papenfort K, Lucchini S, et al. Coding sequence targeting by MicC RNA reveals bacterial mRNA silencing downstream of translational initiation. Nat Struct Mol Biol, 2009; 16, 840−6. doi: 10.1038/nsmb.1631 [35] Simm R, Fetherston JD, Kader A, et al. Phenotypic convergence mediated by GGDEF-domain-containing proteins. J Bacteriol, 2005; 187, 6816−23. doi: 10.1128/JB.187.19.6816-6823.2005 [36] Masse E, Gottesman S. A small RNA regulates the expression of genes involved in iron metabolism in Escherichia coli. Proc Natl Acad Sci USA, 2002; 99, 4620−5. doi: 10.1073/pnas.032066599 [37] Huang SH, Wang CK, Peng HL, et al. Role of the small RNA RyhB in the Fur regulon in mediating the capsular polysaccharide biosynthesis and iron acquisition systems in Klebsiella pneumoniae. BMC Microbiol, 2012; 12, 148. doi: 10.1186/1471-2180-12-148 [38] Vecerek B, Moll I, Blasi U. Control of Fur synthesis by the non-coding RNA RyhB and iron-responsive decoding. EMBO J, 2007; 26, 965−75. doi: 10.1038/sj.emboj.7601553 [39] Mey AR, Craig SA, Payne SM. Characterization of Vibrio cholerae RyhB: the RyhB regulon and role of ryhB in biofilm formation. Infect Immun, 2005; 73, 5706−19. doi: 10.1128/IAI.73.9.5706-5719.2005
