SU Di Ya, WAN Hong, LI De Zhi, QIAO Hui, SCHUMACHER Michael, LIU Song. Analysis of Preoperative Factors Influencing Hypoglossal-facial ‘Side’-to-side Neurorrhaphy for Facial Paralysis after Excision of Acoustic Neuroma[J]. Biomedical and Environmental Sciences, 2020, 33(1): 30-36. doi: 10.3967/bes2020.004
Citation: SU Di Ya, WAN Hong, LI De Zhi, QIAO Hui, SCHUMACHER Michael, LIU Song. Analysis of Preoperative Factors Influencing Hypoglossal-facial ‘Side’-to-side Neurorrhaphy for Facial Paralysis after Excision of Acoustic Neuroma[J]. Biomedical and Environmental Sciences, 2020, 33(1): 30-36. doi: 10.3967/bes2020.004

Analysis of Preoperative Factors Influencing Hypoglossal-facial ‘Side’-to-side Neurorrhaphy for Facial Paralysis after Excision of Acoustic Neuroma

doi: 10.3967/bes2020.004
Funds:  This work was supported by grants from the National Natural Science Foundation of China [No.81471239]
More Information
  • Author Bio:

    SU Di Ya, MD, female, born in 1987, majoring in nerve injury and repair

  • Corresponding author: LIU Song, MD, PhD, Tel: 86-18311025866, E-mail: song.liu@inserm.fr
  • Received Date: 2019-03-20
  • Accepted Date: 2019-12-04
  • Objective Hypoglossal nerve-facial nerve ‘side’-to-side neurorrhaphy is a new method for the treatment of potential incomplete facial paralysis after acoustic neuroma. However, there are differences in postoperative outcomes among patients. This study analysed preoperative factors that may influence the treatment outcomes of neurorrhaphy. Methods We performed a retrospective study of 53 patients who were treated by neurorrhaphy for facial paralysis after acoustic neuroma resection. After a one-year follow-up period, the patients were divided into two groups according to facial functional outcome: better recovery or ordinary recovery. We analysed the following factors: gender, age, tumour size, and characteristics, tumour adhesion to the facial nerve, the duration of facial paralysis (DFP) and F wave appearance prior to neurorrhaphy (F wave). Results Univariate analysis showed significant differences between the two groups in DFP (P = 0.0002), tumour adhesion to the facial nerve (P = 0.0079) and F waves (P = 0.0048). Logistic regression analysis of these factors also showed statistical significance with P values of 0.042 for the DFP, 0.043 for F waves, and 0.031 for tumour adhesion to the facial nerve. Conclusions Tumour adhesion to the facial nerve, F waves appearance and DFP prior to neurorrhaphy are the predominant factors that influence treatment outcomes.
  • 加载中
  • [1] Olshan M, Srinivasan VM, Landrum T, et al. Acoustic neuroma: an investigation of associations between tumour size and diagnostic delays, facial weakness, and surgical complications. Ear Nose Throat J, 2014; 93, 304−16.
    [2] Su D, Li D, Wang S, et al. Hypoglossal-facial nerve 'side'-to-side neurorrhaphy for facial paralysis resulting from closed temporal bone fractures. Restor Neurol Neurosci, 2018; 36, 443−57.
    [3] Chuang CC, Lu CY, Chang NJ, et al. Comparison of functional results after cross-face nerve graft-, spinal accessory nerve-, and masseter nerve-innervated gracilis for facial paralysis reconstruction: the chang gung experience. Ann Plast Surg, 2018; 81(6S Suppl 1), S21−9.
    [4] Bernat I, Vitte E, Lamas G, et al. Related timing for peripheral and central plasticity in hypoglossal-facial nerve anastomosis. Muscle Nerve, 2006; 33, 334−41. doi:  10.1002/mus.20464
    [5] Asaoka, Sawamura, Nagashima, et al. Surgical anatomy for direct hypoglossal-facial nerve side-to-end anastomosis. J Neurosurg, 1999; 91, 268−75. doi:  10.3171/jns.1999.91.2.0268
    [6] Asaoka K, Sawamura Y, Murai H, et al. Schwannoma of the oculomotor nerve: a case report with consideration of the surgical treatment. Neurosurgery, 1999; 45, 630−4. doi:  10.1097/00006123-199909000-00039
    [7] Darrouzet V, Guerin J, Bébéar JP, et al. New technique of side-to-end hypoglossal-facial nerve attachment with translocation of the infratemporal facial nerve. J Neurosurg, 1999; 90, 27−34. doi:  10.3171/jns.1999.90.1.0027
    [8] Sughrue ME, Yang I, Rutkowski MJ, et al. Preservation of facial nerve function after resection of vestibular schwannoma. Bri J Neurosurg, 2010; 24, 6.
    [9] Huang X, Xu J, Xu M, et al. Functional outcome and complications after the microsurgical removal of giant vestibular schwannomas via the retrosigmoid approach: a retrospective review of 16-year experience in a single hospital. BMC Neurol, 2017; 17, 18. doi:  10.1186/s12883-017-0805-6
    [10] Wang BB, Zhang SD, Feng J, et al. An experimental study on the optimal timing for the repair of incomplete facial paralysis by hypoglossal-facial 'side'-to-side neurorrhaphy in rats. Biomed Environ Sci, 2018; 31, 413−24.
    [11] Zhang L, Li D, Wan H, et al. Hypoglossal-facial nerve 'side'-to-side neurorrhaphy using a predegenerated nerve autograft for facial palsy after removal of acoustic tumours at the cerebellopontine angle. J Neurol Neurosurg Psychiatry, 2015; 86, 865. doi:  10.1136/jnnp-2014-308465
    [12] Certal VF, Zaghi S, Riaz M, et al. Hypoglossal nerve stimulation in the treatment of obstructive sleep apnea: a systematic review andmeta-analysis. Laryngoscope, 2015; 125, 1254−64. doi:  10.1002/lary.25032
    [13] Wedekind C, Klug N. Facial F wave recording: a novel and effective technique for extra-and intraoperative diagnosis of facial nerve function in acoustic tumour disease. Otolaryngol Head Neck Surg, 2003; 129, 114−20.
    [14] Wan H, Zhang L, Blanchard S, et al. Combination of hypoglossal-facial nerve surgical reconstruction and neurotrophin-3 gene therapy for facial palsy. J Neurosurg, 2013; 119, 739. doi:  10.3171/2013.1.JNS121176
    [15] Dalla TE, Pavese C, Cecini M, et al. Hypoglossal-facial nerve anastomosis and rehabilitation in patients with complete facial palsy: cohort study of 30 patients followed up for three years. Funct Neurol, 2014; 29, 183−7.
    [16] Tao X, Li P, Wan H, et al. Preliminary study of facial nerve F wave evaluation hypoglossal-facial nerve reconstruction with predegenerated nerve graft for peripheral facial palsy. National Med J China, 2015; 95, 1648−50. (In Chinese)
    [17] Panayiotopoulos CP, Chroni E. F-waves in clinical neurophysiology: a review, methodological issues and overall value in peripheral neuropathies. Electroencephalogr Clin Neurophysiol, 1996; 101, 365−74.
    [18] Terzis J K, Tzafetta K. 'Babysitter' procedure with concomitant muscle transfer in facial paralysis. Plast Reconstr Surg, 2009; 124, 1142−56. doi:  10.1097/PRS.0b013e3181b2b8bc
    [19] Morton RP, Ackerman PD, Pisansky MT, et al. Prognostic factors for the incidence and recovery of delayed facial nerve palsy after vestibular schwannoma resection. J Neurosurg, 2011; 114, 375−80. doi:  10.3171/2010.5.JNS091854
    [20] Mesrati F, Vecchierini MF. F-waves: neurophysiology and clinical value. Neurophysiol Clin, 2004; 34, 217−43. doi:  10.1016/j.neucli.2004.09.005
    [21] Yamamoto Y, Sekido M, Furukawa H, et al. Surgical rehabilitation of reversible facial palsy: facial--hypoglossal network system based on neural signal augmentation/neural supercharge concept. J Plast Reconstr Aesthet Surg, 2007; 60, 223−31.
    [22] Shichinohe R, Furukawa H, Sekido M, et al. Direction of innervation after interpositional nerve graft between facial and hypoglossal nerves in individuals with or without facial palsy: a rat model for treating incomplete facial palsy. J Plast Reconstr Aesthet Surg, 2012; 65, 763−70.
    [23] Fu SY, Gordon T. Contributing factors to poor functional recovery after delayed nerve repair: prolonged axotomy. J Neurosci, 1995; 15, 3876−85. doi:  10.1523/JNEUROSCI.15-05-03876.1995
    [24] Höke A, Gordon T, Zochodne DW, et al. A decline in glial cell-line-derived neurotrophic factor expression is associated with impaired regeneration after long-term Schwann cell denervation. Exp Neurol, 2002; 173, 77−85. doi:  10.1006/exnr.2001.7826
    [25] Salonen V, Lehto M, Vaheri A, et al. Endoneurial fibrosis following nerve transection. An immunohistological study of collagen types and fibronectin in the rat. Acta Neuropathol, 1985; 67, 315−21. doi:  10.1007/BF00687818
    [26] Xiao FL, Gao PY, Qian TY, et al. Cortical representation of facial and tongue movements: a task functional magnetic resonance imaging study. Clin Physio Funct Imaging, 2017; 37, 341−5.
    [27] Chen R, Cohen LG, Hallett M. Nervous system reorganization following injury. Neuroscience, 2002; 111, 761−73. doi:  10.1016/S0306-4522(02)00025-8
    [28] Kaas JH, Collins CE. Anatomic and functional reorganization of somatosensory cortex in mature primates after peripheral nerve and spinal cord injury. Adv Neurol, 2003; 93, 87−95.
    [29] Guntinas-Lichius O, Effenberger K, Angelov DN, et al. Delayed rat facial nerve repair leads to accelerated and enhanced muscle reinnervation with reduced collateral axonal sprouting during a definite denervation period using a cross-anastomosis paradigm. Exp Neurol, 2000; 162, 98−111. doi:  10.1006/exnr.2000.7309
    [30] Albathi M, Oyer S, Ishii LE, et al. Early nerve grafting for facial paralysis after cerebellopontine angle tumour resection with preserved facial nerve continuity. JAMA Facial Plast Surg, 2016; 18, 1.
  • 加载中
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Figures(2)  / Tables(2)

Article Metrics

Article views(654) PDF downloads(43) Cited by()

Proportional views
Related

Analysis of Preoperative Factors Influencing Hypoglossal-facial ‘Side’-to-side Neurorrhaphy for Facial Paralysis after Excision of Acoustic Neuroma

doi: 10.3967/bes2020.004
Funds:  This work was supported by grants from the National Natural Science Foundation of China [No.81471239]
  • Author Bio:

  • Corresponding author: LIU Song, MD, PhD, Tel: 86-18311025866, E-mail: song.liu@inserm.fr

Abstract:  Objective Hypoglossal nerve-facial nerve ‘side’-to-side neurorrhaphy is a new method for the treatment of potential incomplete facial paralysis after acoustic neuroma. However, there are differences in postoperative outcomes among patients. This study analysed preoperative factors that may influence the treatment outcomes of neurorrhaphy. Methods We performed a retrospective study of 53 patients who were treated by neurorrhaphy for facial paralysis after acoustic neuroma resection. After a one-year follow-up period, the patients were divided into two groups according to facial functional outcome: better recovery or ordinary recovery. We analysed the following factors: gender, age, tumour size, and characteristics, tumour adhesion to the facial nerve, the duration of facial paralysis (DFP) and F wave appearance prior to neurorrhaphy (F wave). Results Univariate analysis showed significant differences between the two groups in DFP (P = 0.0002), tumour adhesion to the facial nerve (P = 0.0079) and F waves (P = 0.0048). Logistic regression analysis of these factors also showed statistical significance with P values of 0.042 for the DFP, 0.043 for F waves, and 0.031 for tumour adhesion to the facial nerve. Conclusions Tumour adhesion to the facial nerve, F waves appearance and DFP prior to neurorrhaphy are the predominant factors that influence treatment outcomes.

SU Di Ya, WAN Hong, LI De Zhi, QIAO Hui, SCHUMACHER Michael, LIU Song. Analysis of Preoperative Factors Influencing Hypoglossal-facial ‘Side’-to-side Neurorrhaphy for Facial Paralysis after Excision of Acoustic Neuroma[J]. Biomedical and Environmental Sciences, 2020, 33(1): 30-36. doi: 10.3967/bes2020.004
Citation: SU Di Ya, WAN Hong, LI De Zhi, QIAO Hui, SCHUMACHER Michael, LIU Song. Analysis of Preoperative Factors Influencing Hypoglossal-facial ‘Side’-to-side Neurorrhaphy for Facial Paralysis after Excision of Acoustic Neuroma[J]. Biomedical and Environmental Sciences, 2020, 33(1): 30-36. doi: 10.3967/bes2020.004
    • Facial nerve injury is one of the main complications following the surgical removal of acoustic neuroma at the cerebellopontine angle area[1]. When treating facial nerve injury, end-to-end neurorrhaphy between the facial nerve stumps is the most effective method with regard for the recovery of facial natural function and the axonal regrowth pathway. However, this approach is impossible in most cases because it is often not feasible to regain the proximal stump of the injured facial nerve. Thus, other facial dynamic reanimation methods that use the nerve transferring technique have been employed with the aim of offering alternative sources of axons to innervate the denervated facial muscles; these include using the hypoglossal nerve, spinal accessory nerve, and masseteric nerve[2,3]. Among the nerves used, the hypoglossal nerve, as a nerve donor, has its own advantages for such purposes. Because it provides a sufficient axonal source and more powerful facial reanimation even if the hypoglossal nerve is only hemisectioned for neurorrhaphy, the existing shared innervation of the facial and hypoglossal nuclei within the brainstem allows intense facial exercises and the rebypromotes central plasticity and facilitates the development of new functions for hypoglossal motoneurons to improve facial function[4] and prevent synkinesis of the doubly innervated facial muscles[5-7]. In neurosurgery, the development of microsurgical techniques allows us to anatomically conserve the affected facial nerve in a large number of clinical cases, although to different extents, and provide the possibility of the patient’s facial nerve recovering on its own. The definition of this condition is potential incomplete facial paralysis, the incidence of which is relatively higher in patients with facial nerve injury[8,9]. For treating these patients, we improved the classic method of hypoglossal-facial end-to-end neurorrhaphy with ‘side’-to-side neurorrhaphy with the aim of preserving the facial nerve without compromising the remnant axons and allowing the possibility of spontaneous recovery[10]. A main outcome is the double innervation of paralyzed facial mimic muscles by both hypoglossal and facial motoneurons. However, in clinical practice, we have observed variability among patients treated with facial functional recovery after ‘side’-to-side neurorrhaphy. Because all neurorrhaphy procedures were performed by the same neurosurgeon and with the same and standardized method, we suspect that preoperative factors would have major influence on treatment outcomes.

      In this study, we retrospectively assessed 53 patients who were treated with hypoglossal nerve-facial ‘side’-to-side neurorrhaphy for facial paralysis resulting from acoustic neuroma resection but with anatomical preservation of the injured facial nerve in our neurosurgical department. Possible preoperative influencing factors were collected and analysed. We used univariate and logistic analyses to analyse the impacts of these factors on postoperative functional outcomes and to obtain useful information for clinical practice.

    • This was a retrospective study performed with 53 patients who experienced facial paralysis due to the removal of acoustic tumours and were surgically treated by hypoglossal-facial nerve ‘side’-to-side neurorrhaphy in our Department of Neurosurgery between June 2011 and September 2016. The inclusion criteria were as follows: (1) the patient developed facial paralysis after acoustic neuroma resection and had normal nerve function before the operation, (2) the patient’s age ranged from 16 to 70 years old, (3) at least one side of the sural nerve function was normal, (4) no contraindications for general anaesthesia, and (5) voluntary treatment via hypoglossal-facial ‘side’-to-side neurorrhaphy. Patients who did not meet the above criteria were excluded from the study. Before the removal of the acoustic tumour, no facial function deficit was observed in any of these patients. After surgery, the patients developed serious facial paralysis with a House-Brackmann (H-B) scale grade V or VI, even though their facial nerve was anatomically preserved during tumour removal. The patients were followed-up for one year after the neurorrhaphy. This study was approved by the local Ethics Committee of Beijing Tiantan Hospital, Capital Medical University, China (KY2017-006-02).

    • The principal indication for hypoglossal-facial nerve ‘side’-to-side neurorrhaphy was significant incomplete facial paralysis due to facial nerve injury. The preservation of facial nerve anatomical structure after injury could allow some remnant facial axons to be conserved and/or lead to spontaneous regeneration. The standard hypoglossal-facial nerve ‘side’-to-side neurorrhaphy was performed using a predegenerated nerve autograft (PSNG) in each patient by the same neurosurgeon[11]. The use of a PSNG was based on the aim of improving axonal regeneration given the proliferation of its Schwann cells due to axotomies. This concept has been demonstrated in previous studies by other investigators as well as our own study[11]. Briefly, the surgical operation was performed under general anaesthesia. The ipsilateral hypoglossal nerve was exposed and identified using an electrostimulator while recording the active potential in the tongue muscle at the ipsilateral side through two inserted electrodes[12]. One half of the hypoglossal nerve was cross-sectioned at a site closely distal to the descending branch. The proximal extremity of the PSNG that was predegenerated one week prior to neurorrhaphy and removed from the ipsilateral sural nerve was surgically bridged end-to-‘side’ to the hypoglossal nerve at the partial cross-section site. The injured facial nerve was exposed from its main trunk to the bifurcation area as well as its two main branches within the parotid gland. An epineurium window was created using microsurgical scissors on the exposed facial nerve at each of the two main branches closely caudal to the bifurcation while carefully preserving the tissue structure. The distal extremity of the PSNG was divided into two ends that were then surgically bridged to the facial nerve, end-to-side, at each of the epineurium windows. Figure 1 illustrates the hypoglossal-facial nerve ‘side’-to-side neurorrhaphy. All patients underwent intense rehabilitation exercise after neurorrhaphy.

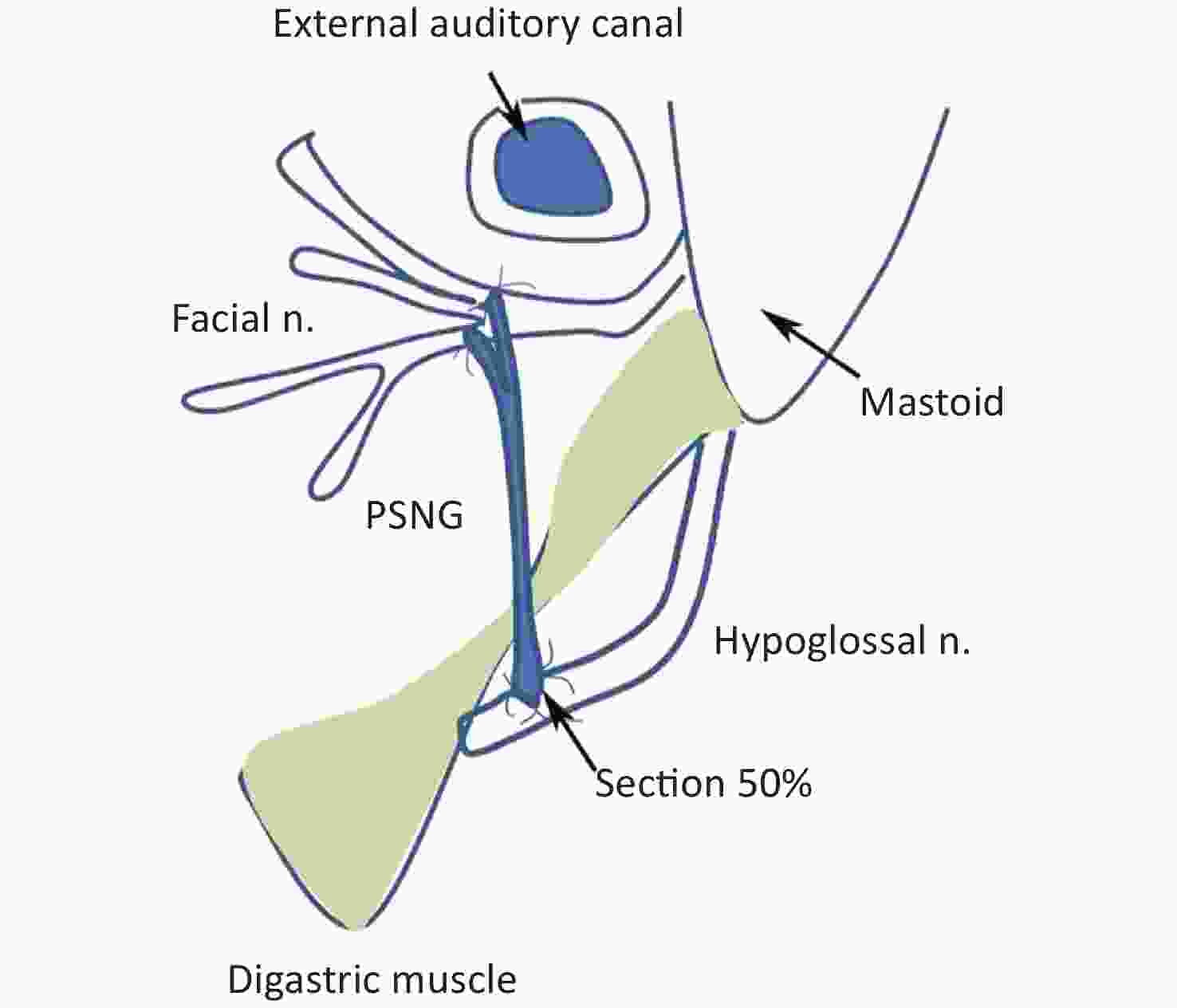

      Figure 1.  Schematic drawings showing hypoglossal nerve-facial nerve ‘side’-to-side neurorrhaphy using a predegenerated nerve autograft (PSNG). One-half of the hypoglossal nerve was cross-sectioned at a site closely distal to the descendens hypoglossi. The proximal extremity of the PSNG was surgically bridged end-to-‘side’ to the hypoglossal nerve at the partial cross-section site. An epineurium window was created using microsurgical scissors on the exposed facial nerve at each of the two or three main branches with careful preservation of tissue structure. The distal extremity of the PSNG was divided into two ends that were then surgically bridged to the facial nerve, end-to-side, at each of the epineurium windows.

    • The clinical data of the 53 patients are shown above. Tumour-related clinical data were obtained from detailed surgical records of acoustic neuroma resection. Patients were included in the study only when their surgical record regarding the acoustic neuroma resection was complete and detailed. Among the included patients, 29 were female and 23 were male. The patients’ ages ranged from 19 to 68 years old with a mean ± standard deviation (SD) of 42.47 ± 13.18 years old. In the clinic, we followed the traditional route of repair and generally recommended patients undergo 3−6 months of observation after facial paralysis. The period from the onset of facial paralysis to the neurorrhaphy ranged from 1 to 84 months with a mean ± SD of 12.86 ± 16.26 months (only one patient insisted on undergoing the surgery 1 month after facial paralysis). To obtain accurate results, we did not exclude these data from calculations of significant differences. We further divided the patients into 3 subgroups according to the duration of facial paralysis to analyse the time pointsat which neurorrhaphy was performed. The patients were divided into short (≤ 6 months), medium (7−12 months) or long (≥ 13 months) period groups. According to the records, a solid tumour was found in 34 patients, and tight adhesion between the tumour and facial nerve was observed in 35 patients. The greatest tumour diameters ranged from 1.5 to 6.0 cm with a mean ± SD of 4.00 ± 1.10 cm. Before neurorrhaphy, electrophysiological examination was performed using electromyography (Nicolet EDX, VIASYS Health Care Inc., Madison, Wisconsin, USA) to detect F wave appearances in all patients. F waves are one of the late responses produced by the antidromic activation of motoneurons via supramaximal stimulation of the nerve trunk and indicates nerve conduction from the motoneuron cell body to the motor endplate, which has a persistence of typically 80%–100% (or at least above 50%) in intact muscles[13]. We found 19 patients with positive and 34 with negative responses for F waves. The H-B facial nerve scale was used as the main indicator to assess facial function Supplementary Table S1 (available in www.besjournal.com).

      Patient No.Gender
      (M/F)
      Age (years)FPD (months)GTD (cm)Tumour characteristicsAdhesion between tumour and facial nerve (yes/no)F wave on EMG (yes/no)H-B gradeDRE (month)
      Before neurorrhaphyAfter neurorrhaphyDescend
      grade
      1F2544solidnoyesVIII42
      2M3564.3solidyesyesVIII412
      3F4262.5solidyesnoVIII412
      4F4663.4solidnoyesVIII43
      5M6564cysticyesyesVIII412
      6M3842.5solidnonoVII36
      7F3951.5solidnoyesVIIII36
      8M4193.4solidnonoVIIII312
      9F4353.6solidyesyesVIIII312
      10F4436cysticnoyesVII36
      11F4633cysticnoyesVIIII312
      12F51125cysticyesyesVIIII312
      13M6042.8cysticnonoVIIII36
      14F6442solidnoyesVIIII33
      15F2743solidnonoVII312
      16M19136solidyesyesVIIV26
      17M19244cysticyesnoVIII212
      18F23126solidyesyesVIII212
      19F2466solidnonoVIIV23
      20F2615cysticnoyesVIIV212
      21F2665solidyesnoVIIV23
      22F303.53.5solidyesyesVIII26
      23F3475solidyesyesVIIV212
      24M3574solidyesyesVIIV212
      25F3644cysticnoyesVIII212
      26M4154.5solidyesnoVIIV212
      27M42115.5cysticnonoVIII23
      28M4854cysticyesnoVIII28
      29M4844solidyesyesVIIV26
      30M5034.7solidyesnoVIIV212
      31F51133cysticnonoVIII212
      32F51133solidnonoVIIV212
      33F5345solidnonoVIIV26
      34M61123solidyesnoVIIV212
      35F66103solidyesnoVIIV26
      36M52184solidyesyesVIIV22
      37M1954.5solidyesnoVIV10
      38F24134.5solidyesnoVIV13
      39M2756cysticyesnoVIV13
      40M3075solidyesnoVIV16
      41M40114cysticyesnoVIV12
      42F45844.8cysticyesnoVIV16
      43F46224solidyesnoVIV16
      44M49123.7cysticyesnoVIV16
      45F52845solidyesnoVIV12
      46M63332solidyesnoVIV16
      47F3793cysticyesnoVV01
      48F42135solidyesnoVIVI06
      49F42303.2solidnonoVIVI00
      50M49163cysticyesnoVIVI03
      51M54335solidyesnoVIVI06
      52F6363cysticyesnoVIVI012
      53M68363.5cysticyesnoVIVI06
      Mean±SD42.47 ± 13.1812.86 ± 16.264.00 ± 1.107.23 ± 4.07
      ItemQItemQItemQItemQItemQItemQItemQ
      TotalF29Solid34Yes35Yes19VI42VI64 grades5
      M24Cystic19No18No34V11V113 grades10
      IV142 grades21
      III141 grade10
      II80 grade7
       Note. FPD: facial paralysis duration; GTD: great tumour diameter; EMG: electromyography; DRE: duration of rehabilitation exercises; Q: quantity; F: female; M: male.

      Table S1.  Basic clinical data for the 53 patients in the research

    • Age, the duration of facial paralysis and the greatest tumour diameter are expressed as the mean ± SD. GraphPad Prism 6.02 software was used for single-factor statistical analysis and one-way ANOVA. Continuous variables such as age, the duration of facial paralysis and greatest tumour diameter were analysed byunpaired T test. Other factors, including, F wave appearance, tumour adhesion to the facial nerve and tumour characteristics, were binary variables and were analysed by the chi-squared test. SPSS 19.0 software was used for logistic statistical analysis. P values ≤ 0.05 were considered statistically significant. For the logistic statistical analysis, separate odds ratios (ORs) and 95% CIs were also calculated. In addition, the patients were also divided into three subgroups according to the duration of facial paralysis for neurorrhaphy timing analysis. The three subgroups were analysed by one-way ANOVA followed by Tukey’s posthoc test for between-group comparisons.

    • In this study, 36/53 patients showed better recovery of facial function, and 17/53 patients showed ordinary recovery. Clinical data were analysed using univariate analysis to determine which preoperative factors influenced treatment prognosis after neurorrhaphy.

      The age distributions were 41.69 ± 2.19 years old in the better recovery group and 44.35 ± 3.37 years old inthe ordinary recovery group. There wasno significant difference between the two groups (P = 0.50). There was also no significant difference between the two groups (P = 0.57) in the gender distribution. The duration of facial paralysis before neurorrhaphy significantly differed between the better recovery group (9.29 ± 0.81 months) and the ordinary recovery group (24.24 ± 6.01 months; P = 0.0002). In the better recovery group, 25 patients had solid tumours, and 11 patients had cystic tumours. In the ordinary recovery group, 9 patients had solid tumours, and 8 patients had cystic tumours. No significant difference was established between the two groups intumour characteristics (P = 0.24). However, tumour adhesion to the facial nerve was observed in 19/36 patients in the better recovery group and in 16/17 patients in the ordinary group (P = 0.0079). A significant difference was also found between the two groups in F wave recordings (P = 0.0048). Before neurorrhaphy, 18/36 patients had positive F waves in the better recovery group. In contrast, only 1/17 patients had a positive F wave response in the ordinary recovery group.

    • Univariate analysis of the duration of facial paralysis, F wave appearance and tumour adhesion to the facial nerve revealed significant differences between the better recovery and ordinary recovery groups. These factors were further analysed by logistic regression analysis, as shown in Table 1. The P values of the logistic regression analysis were 0.042 for the duration of facial paralysis (OR = 1.129, 95% CI = 1.004–1.270), 0.043 for F wave appearance (OR = 0.095, 95% CI = 0.010–0.924), and 0.031 for tumour adhesion to the facial nerve (OR = 0.063, 95% CI = 0.005–0.779), indicating that they influenced neurorrhaphy treatment prognoses.

      VariableUnitP valueOdds ratio95% CI
      FPDmonth0.0421.1291.004–1.270
      F wave on EMG before the procedureyes/No0.0430.0950.010–0.924
      Adhesion between the tumour and facial nerveyes/No0.0310.0630.005–0.779
       Note. P values were determined by logistic test.

      Table 1.  Logistic regression analysis results for neurorrhaphy

    • Patients were divided into subgroups based on facial paralysis duration: 26/53 in the short-period subgroup, with facial paralysis durations of 4.54 ± 1.24 months ( ≤ 6 months); 12/53 in the medium-period subgroup with facial paralysis durations of 9.92 ± 1.98 months (7–12 months); and 15/53 in the long-period subgroup with facial paralysis durations of 29.67 ± 22.76 months ( ≥ 13 months). Statistical analysis performed using one-way ANOVA followed by Tukey’s post hoc test was performed according to the postoperative functional recovery of H-B grade and showed that there were significant differences among the three subgroups (P ≤ 0.0001). Upon analysis of the sets of two subgroups (Figure 2), a significant difference was established between the short- and long-period subgroups (P < 0.0001), although there was no difference between the short- and medium-period subgroups (P = 0.053) or between the medium- and long-period subgroups (P = 0.111).

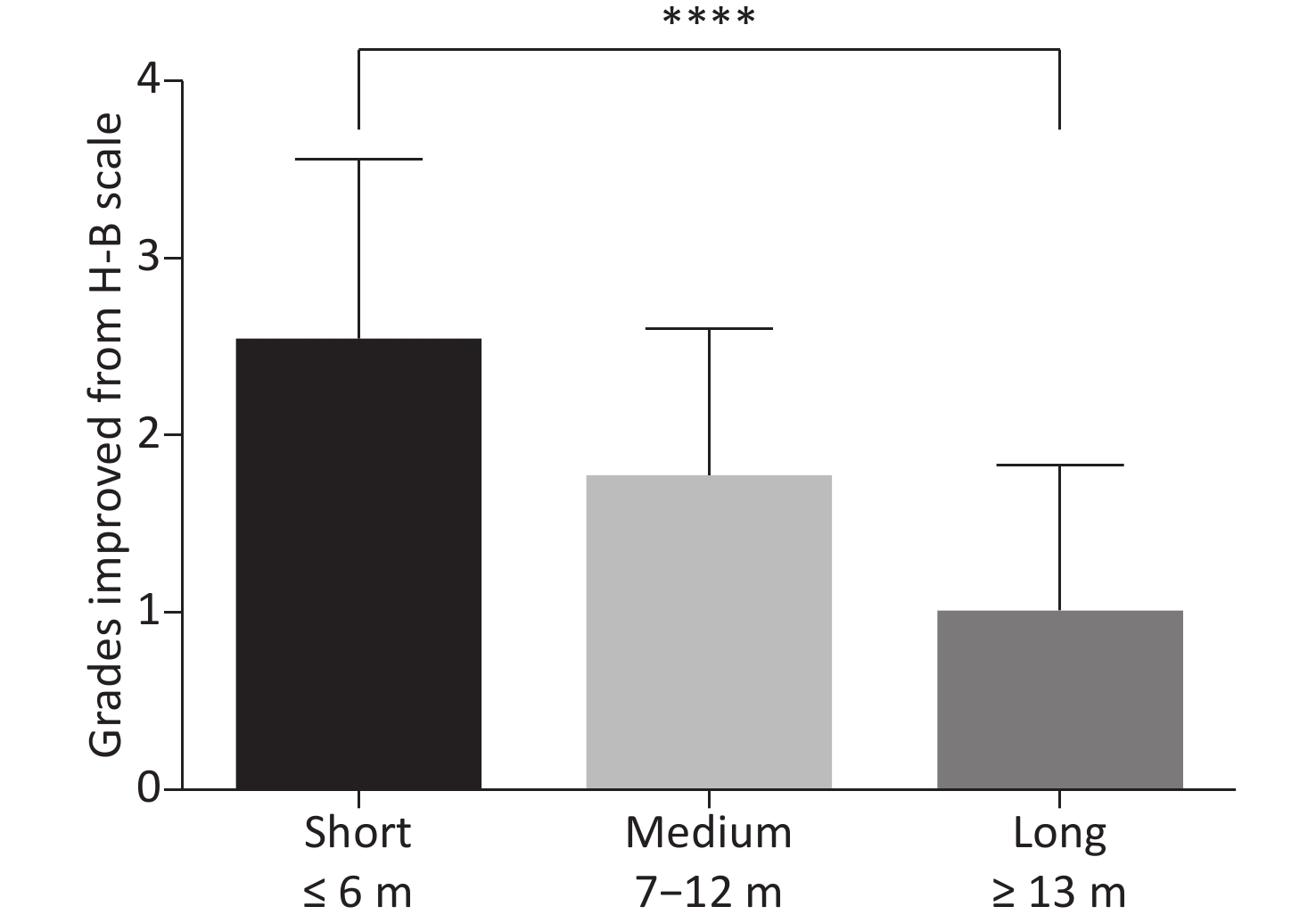

      Figure 2.  Statistical analysis was performed using one-way ANOVA followed by Tukey’s post-hoc test according to the postoperative functional recovery on the H-B scale, and the results showed that there were significant differences among the three subgroups (****P ≤ 0.001). Upon analysis of sets of two subgroups (Figure 2), a significant difference was established between the short- and long-period subgroups (P < 0.001), although there was no difference between the short- and medium-period subgroups (P = 0.053) or between the medium-and long-period subgroups (P = 0.111).

    • Both internal and external factors have been shown to influence the treatment prognosis after hypoglossal-facial nerve ‘side’-to-side neurorrhaphy for incomplete facial paralysis resulting from the removal of acoustic tumour at the cerebellopontine angle area[14,15]. In this study, the surgical neurorrhaphy procedure was considered an invariant factor for the extent of facial function recovery as the surgeries were performed by the same neurosurgeon with the same method. We found that tumour adhesion to the facial nerve, the duration of facial paralysis and F wave appearance prior to neurorrhaphy played much more important roles in treatment prognosis than was found for the other preoperative factors, indicating that both the preservation of facial axons and their microenvironment are pivotal for postoperative facial function recovery after ‘side’-to-side neurorrhaphy[16,17].

      Preservation of the anatomical structure of the facial nerve was a prerequisite for the patients enrolled in this study, as confirmed by a review of surgical recordings after removing their acoustic tumour as well clinical and electrophysiological evaluations. Based on our clinical experience, patients who underwent facial nerve injury with preservation of anatomical structure can have some remnant and/or spontaneously regenerated facial axons even though they experienced complete facial paralysis during the early period after injury that may have persisted for several months.

      Hypoglossal-facial nerve ‘side’-to-side neurorrhaphy can effectively preserve facial nerve fibres and promote double innervation of the paralyzed facial muscles by both hypoglossal and facial motoneurons[8,11]. The concept of side-to-side neurorrhaphy was introduced by Dr. Terzis in 1984 as a part of the ‘babysitter’ procedure for facial reanimation[18]. Since then, few studies have reported using side-to-side neurorrhaphy to treat facial paralysis, particularly in cases with significant incomplete facial paralysis with hypoglossal-facial nerve side-to-side neurorrhaphy. However, the disadvantages of this technique potentially include that it requires two coaptation sites between the hypoglossal and facial nerve when using a nerve graft, and this is likely to reduce the number of regenerated axons that enter the repaired facial nerve, most likely because scar formation at the coaptation sites obstruct the passage of the regenerating axons and lead to axonal escaping from the sites and a longer pathway for axonal elongation. These points remain to be further investigated. Limitations of the study may include eintrinsic and extrinsic factors related to nerve regeneration abilities, which are most likely related to the patient’s psychological state and quality, individual physical conditions, the extent of intensive postoperative facial exercise, large variation in age, and other unknown factors.

      After ‘side’-to-side neurorrhaphy, the participation of facial axons in postoperative facial functional recovery involves the remnant and/or spontaneous regeneration of axons within the original facial nerve pathway. Undoubtedly, tumour adhesion to the facial nerve results in nerve damage during its removal at the cerebellopontine angle area, which occurs inproportion to the amount of tumour adhesion[1,8,19]. Thus, careful preservation of the facial nerve or restoration of the anatomic continuity when the nerve is sectioned during removal of the acoustic tumour is very important for the postoperative prognosis. In addition, F wave appearance prior to neurorrhaphy is an effective indicator of the extent of nerve damage[20].

      Double innervation of facial muscles by both hypoglossal and facial axons may result in the reliable restoration of resting facial symmetry and tone. Their innervation by hypoglossal motoneurons allows powerful movement, whereas reinnervation by facial motoneurons improves physiological recovery[21]. In addition, the incidence of synkinesis maybe reduced if the facial muscles are innervated not only by transposed hypoglossal axons but also by remnant and/or spontaneous regenerating facial axons. Indeed, shared innervation of facial muscles by the motoneurons of the facial and hypoglossal brainstem nuclei may prevent synkinesis[5-7,22]. The respective contribution of remnant facial axons and regenerated hypoglossal axons to facial functional recovery and the underlying mechanisms remain to be investigated.

      The delay between facial palsy and nerve reconstruction is referred to as facial paralysis duration and has also been found to be an important factor for functional recovery. The duration of facial paralysis may result in unfavourable changes in the axonal microenvironment within the facial nerve. During prolonged facial paralysis, Schwann cell tubules within the distal nerve stump and motor endplates progressively degenerate and may even disappear, whereas distal target muscles undergo atrophy[23-25]. Moreover, the functional reorganization of central nervous system sensorimotor areas after long-term facial paralysis also plays an important role in functional recovery, particularly after nerve transfer treatment performed using an ectopic axonal source[26-28].

      Therefore, we stress that early facial nerve repair is necessary to achieve a better functional recovery. In this study, the best results were obtained in patients who had experienced facial paralysis for less than 6 months without any apparent facial muscle atrophy. These results are consistent with the work of Guntinas-Lichius et al.[29], who showed that a denervation period not exceeding 112 d allowed better functional recovery after facial nerve injury. We thus propose that hypoglossal-facial nerve ‘side’-to-side neurorrhaphy should be performed as early as possible in patients with significant facial nerve injury if the absence of spontaneous innervation is observed within 3 months after the onset of facial paralysis[30].

    • In this study, we reviewed 53 patients who experienced facial nerve injury due to the removal of an acoustic tumour at the cerebellopontine angle area and then underwent hypoglossal-facial nerve ‘side’-to-side neurorrhaphy to treat significant facial paralysis in our neurosurgical department from June 2011 to September 2016. To analyse the impact of factors evaluated prior to neurorrhaphy on the postoperative recovery of facial function, we assessed preoperative factors, including gender, age, tumour size and characteristics, tumour adhesion to the facial nerve, the duration of facial paralysis and F wave appearance, using univariate as well as logistic analyses. We found that tumour adhesion to the facial nerve, F wave appearance and the duration of facial paralysis prior to neurorrhaphy are the predominant factors that influence neurorrhaphy treatment outcomes. Tumour adhesion to the facial nerve and F wave appearance are indicators of the extent of facial nerve injury, whereas the duration of facial paralysis affects the microenvironment in the nerve distal stump and target muscles, suggesting that the careful preservation of the facial nerve and early neurorrhaphy are very important for treatment outcomes.

    • The authors thank Ms. WANG Ming Ran and LI Ping (Beijing Neurosurgical Institute) for their excellent assistance in the electrophysiological evaluations.

    • The authors report no conflicts of interest concerning the materials or methods used in this study or the findings specified in this paper.
