Establishment and Modification of Ninety-seven Pneumococcal Serotyping Assays Based on Quantitative Real-time Polymerase Chain Reaction

CHE Jie CHEN Bo Han XU Li GAO Yuan YUE Meng Meng CHEN Zi Man ZHANG Mao Jun SHAO Zhu Jun

CHE Jie, CHEN Bo Han, XU Li, GAO Yuan, YUE Meng Meng, CHEN Zi Man, ZHANG Mao Jun, SHAO Zhu Jun. Establishment and Modification of Ninety-seven Pneumococcal Serotyping Assays Based on Quantitative Real-time Polymerase Chain Reaction[J]. Biomedical and Environmental Sciences, 2023, 36(9): 787-799. doi: 10.3967/bes2023.078
Citation: CHE Jie, CHEN Bo Han, XU Li, GAO Yuan, YUE Meng Meng, CHEN Zi Man, ZHANG Mao Jun, SHAO Zhu Jun. Establishment and Modification of Ninety-seven Pneumococcal Serotyping Assays Based on Quantitative Real-time Polymerase Chain Reaction[J]. Biomedical and Environmental Sciences, 2023, 36(9): 787-799. doi: 10.3967/bes2023.078

doi: 10.3967/bes2023.078

Establishment and Modification of Ninety-seven Pneumococcal Serotyping Assays Based on Quantitative Real-time Polymerase Chain Reaction

Funds: This work was supported by a grant from Beijing Municipal Natural Science Foundation [L212011] and National Institute for Communicable Disease Control and Prevention, Chinese Center for Disease Control and Prevention [131031102000210003 & 102393230020020000002].
More Information
    Author Bio:

    CHE Jie, female, born in 1989, Master, majoring in prevention and control of infectious diseases

    Corresponding author: SHAO Zhu Jun, E-mail: shaozhujun@icdc.cn
    • 关键词:
    •  /
    •  /
    •  /
    •

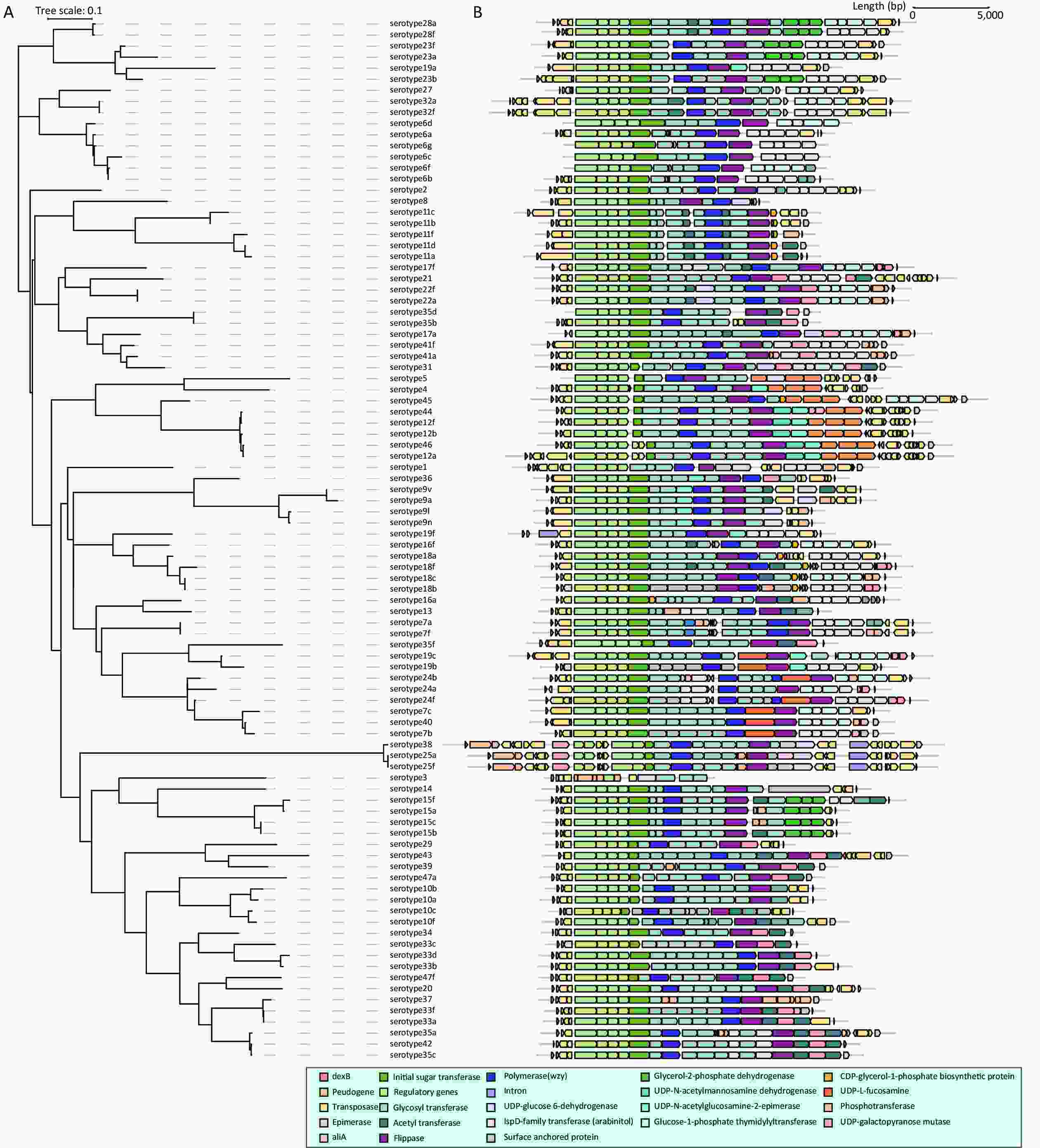

  • Figure  1.  Maximum likelihood phylogenetic tree and the gene structure of pneumococcal cps loci. (A) Phylogenetic tree (Maximum likelihood phylogeny) of 94 serotype pneumococcal cps loci sequence; (B) The gene structure of 94 serotype pneumococcal cps loci sequence. All serotypes contained the regulatory region genes wzg, wzh, wzd, and wze (cpsA-D, light green) and serotype-specific region genes, beginning with an initial sugar transferase (emerald green). The gene structure of S. pneumoniae cps loci is depicted in alignment by cpsA (wzg). The arrows represent the direction of genes, while the colors represent different gene functions.

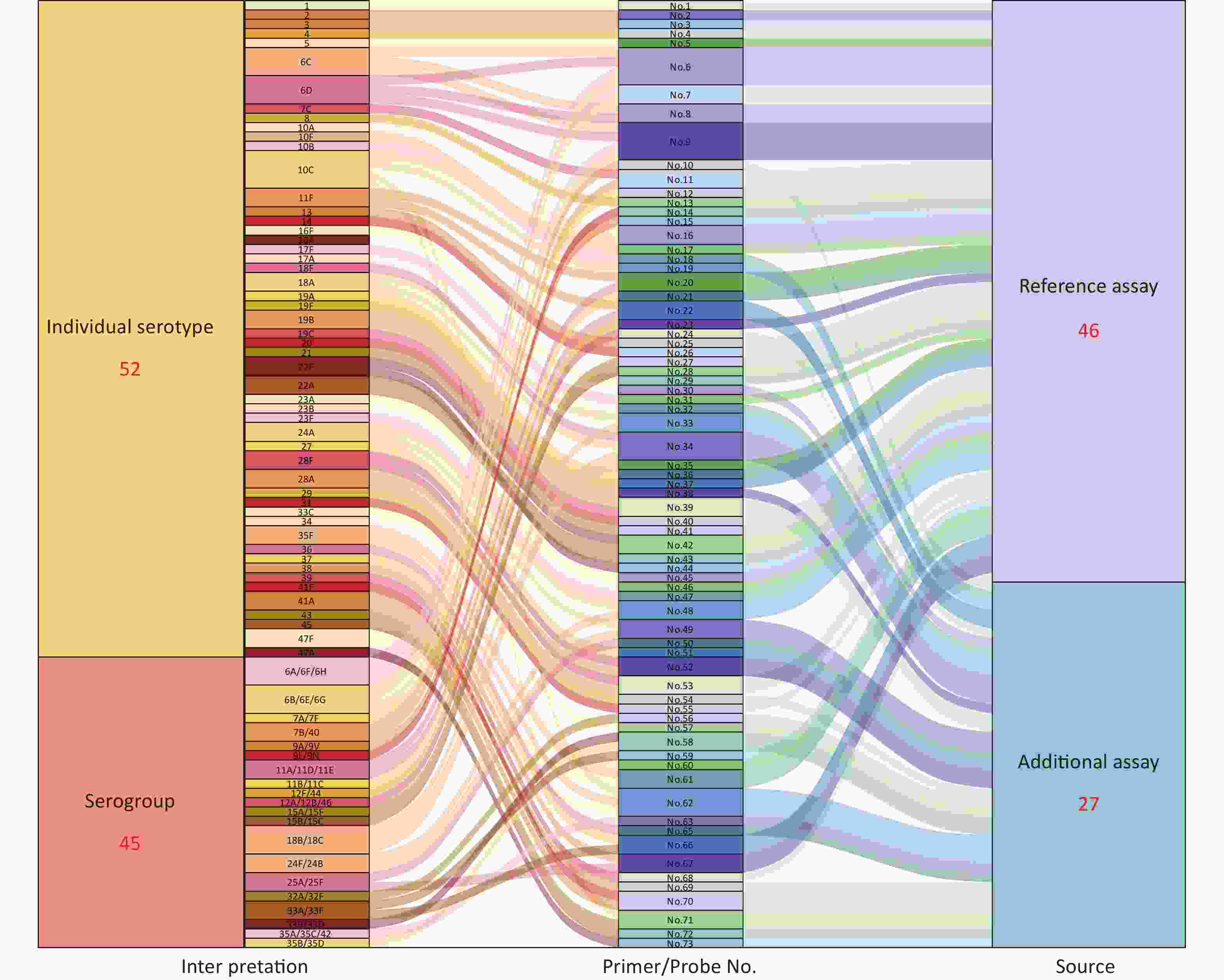

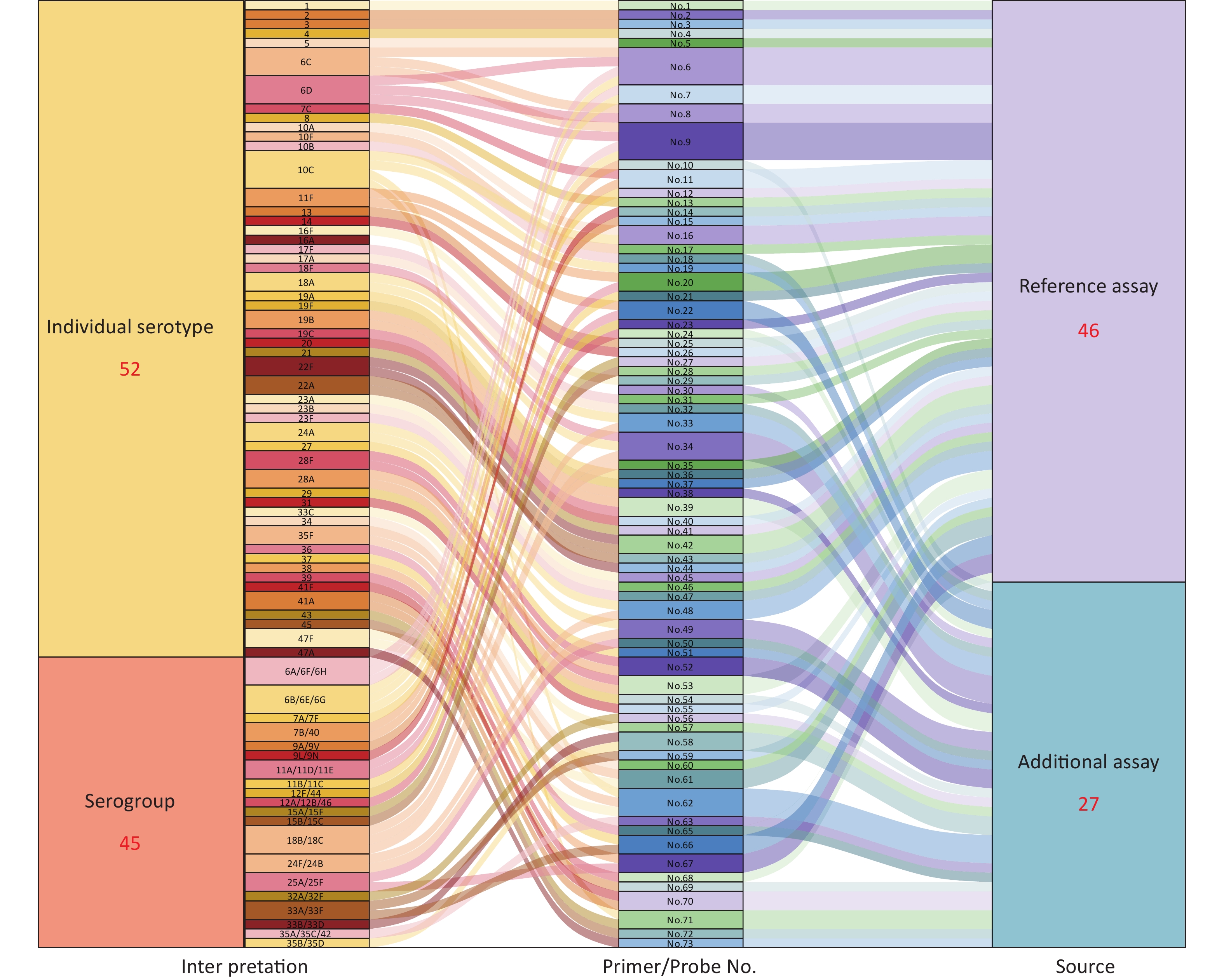

    Figure  2.  Primers/probes and serotyping interpretation of pneumococcus.

    (1) Interpretation: All 97 serotypes could be identified into 72 individual serotypes or small serogroups, of which 52 were identified as individual serotypes, and 45 serotypes belonged to 20 serogroups. (2) Primer/Probe No.: The primers/probes number of pneumococcal serotyping targets sequences. A total of 73 serotyping assays were used for 97 pneumococcal serotyping in this study. (3) Source: The source of primers/probes, 46 assays were previously reported (light purple)[20,21], and 27 additional assays were designed in this study (light blue). The flow from “Interpretation” to “Primer/Probe No.” represents the primers/probes assays that were required to identify this serotype or serogroup.

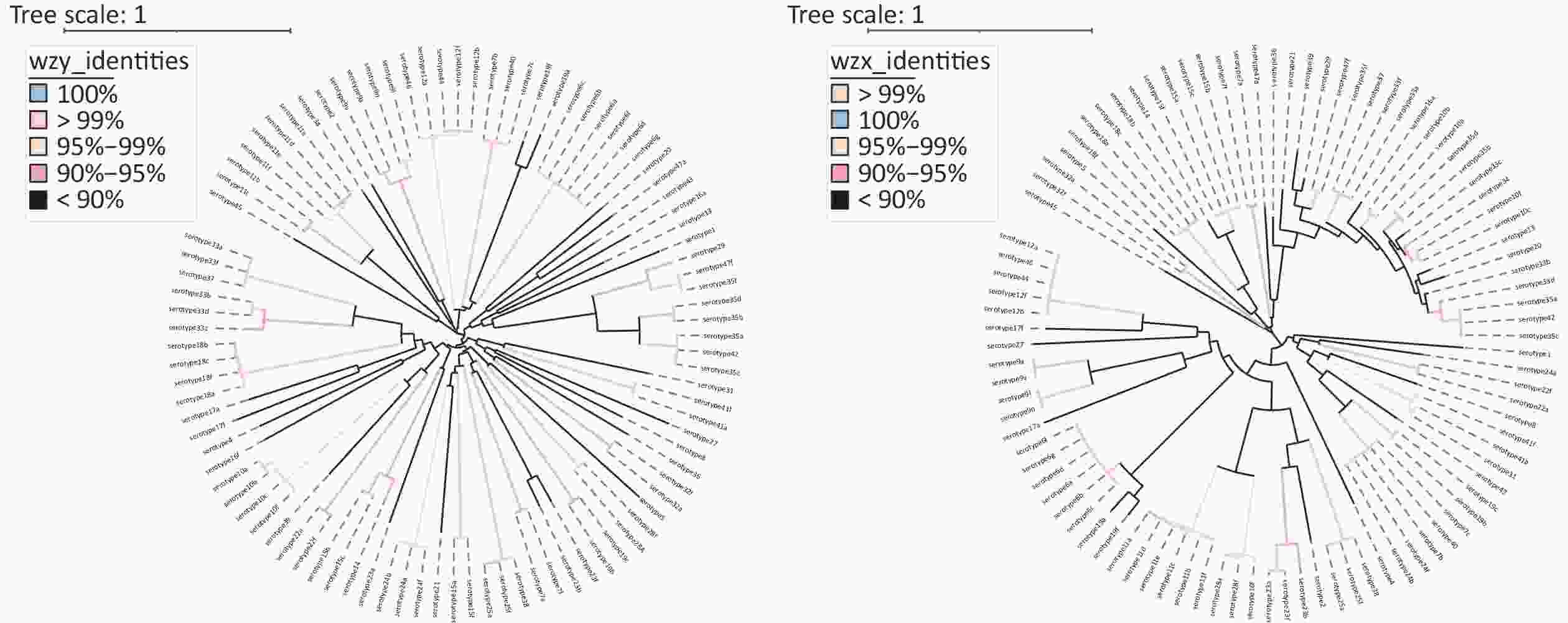

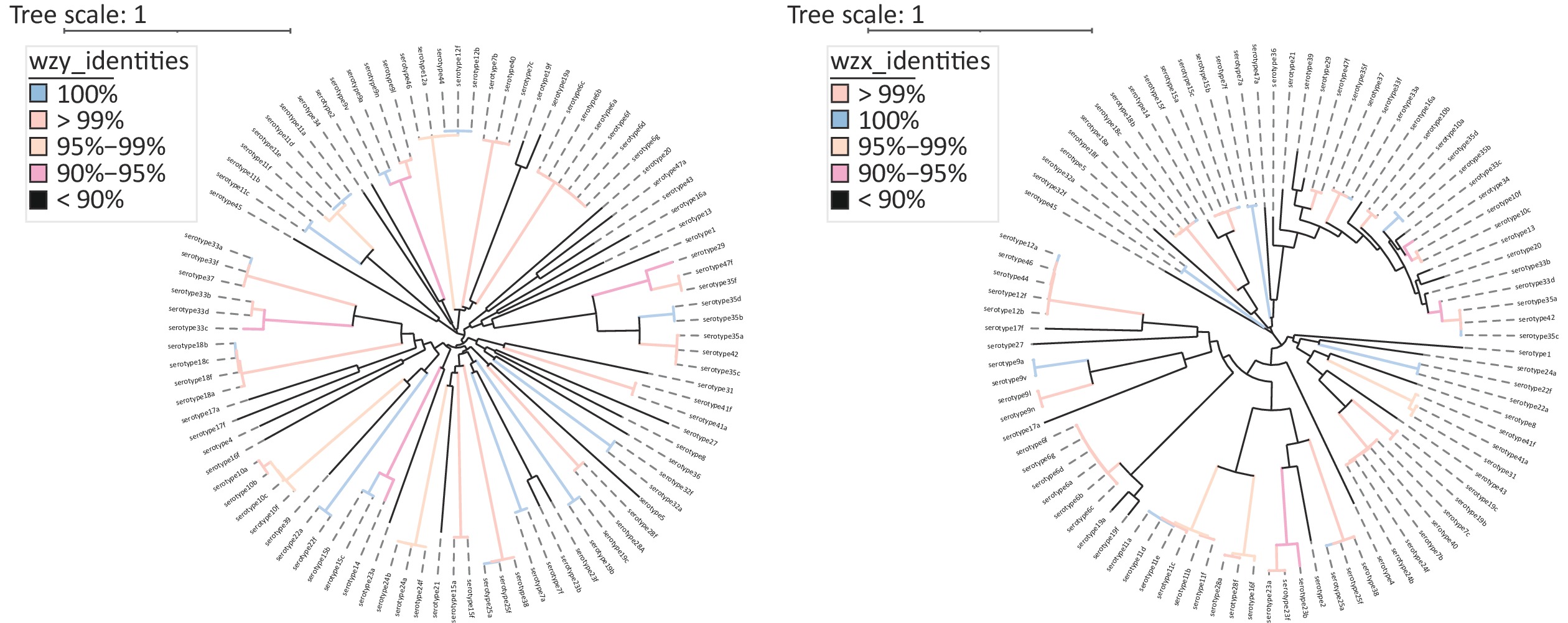

    S1.  SNP-based phylogeny for wzy and wzx. Left: A SNP-based phylogeny for wzy; Right: A SNP-based phylogeny for wzx. All 97 serotypes of pneumococci (expect serotype 3) have wzy and wzx. Serotype 6E and 6H were not included in these two phylogenetic tree due to partial gene sequences in the NCBI database.

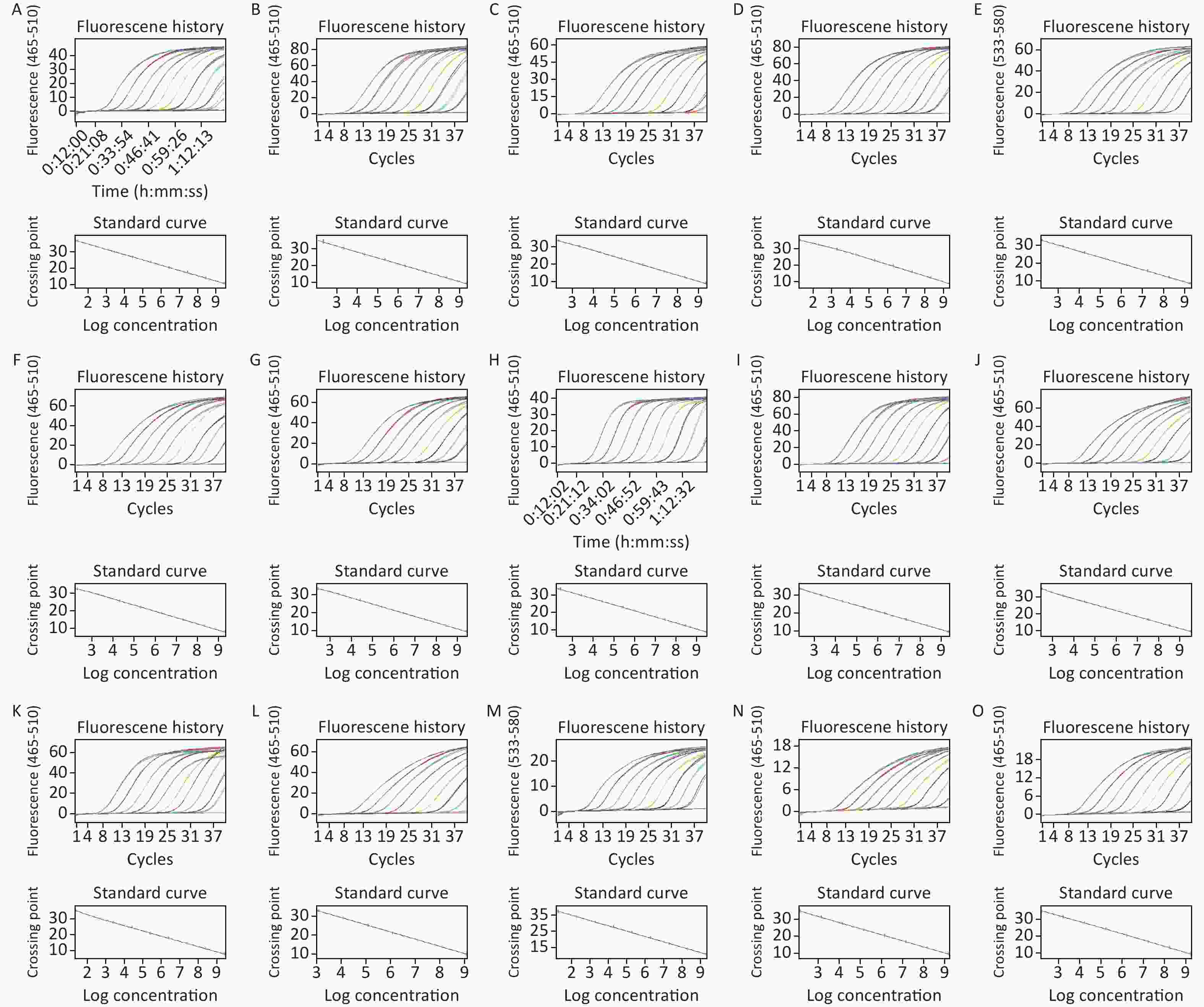

    S2-1.  Amplification curve and standard curve of recombinant standard plasmid (A)–(O) Recombinant standard plasmids corresponding to 10AC, 16A, 17A, 18F, 19C, 24BF, 28A, 29, 32AF, 35AC42, 35F34, 41A, 41F, 45, 47A amplified target fragments, respectively Amplification curves and standard curves (run on Roche LightCycler® 480, Switzerland).

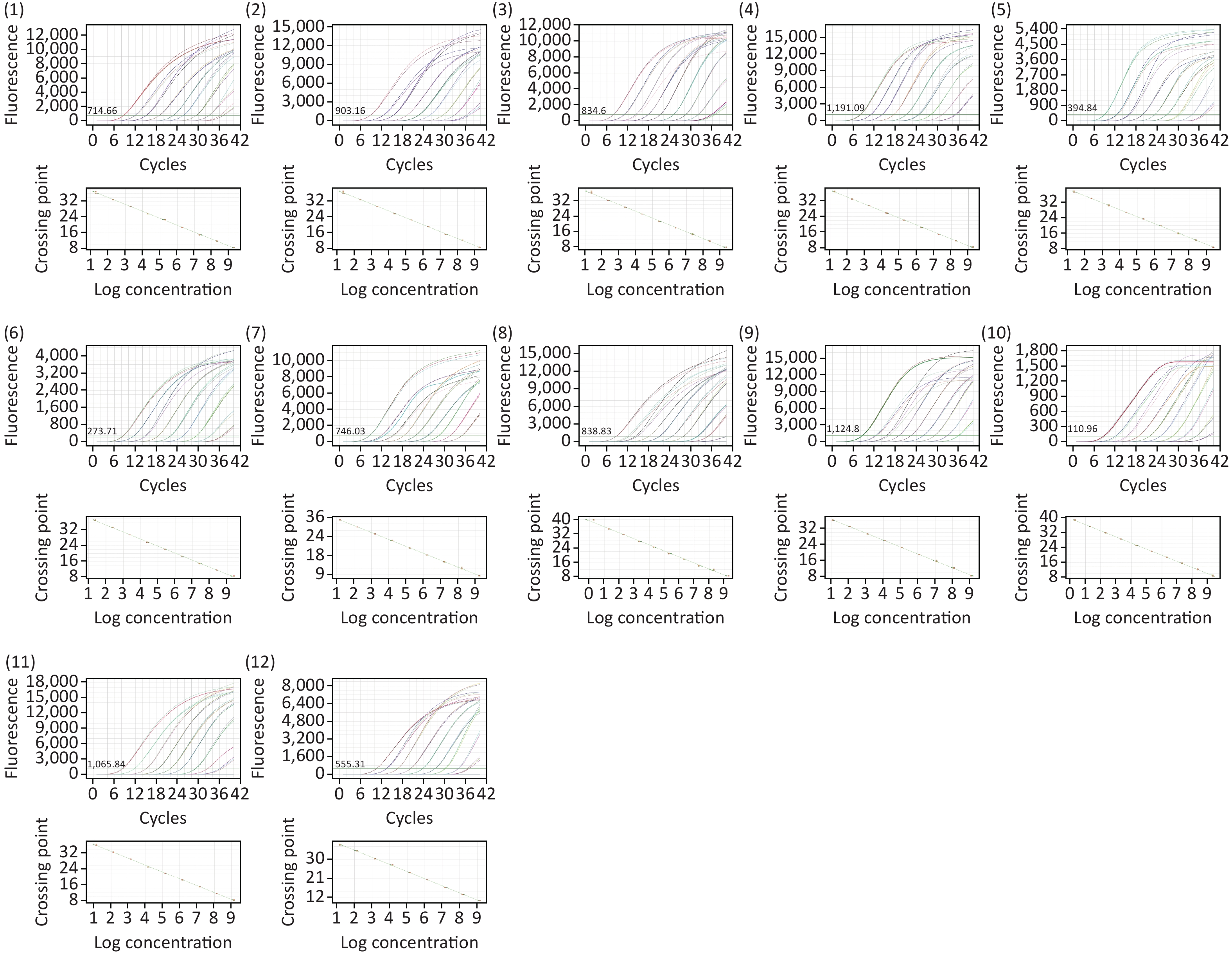

    S2-2.  Amplification curves and standard curves of recombinant standard plasmids (1)–(12) Amplification curves and standard curves of recombinant standard plasmids corresponding to 7BC40, 10B, 11F15ABCF, 12ABC46, 18BCF, 19BC, 25AF, 27, 33C, 33BD, 36, 43 amplified target fragments, respectively (run on BIOER gene9660, China).

    S1.   Information of pneumococcal reference strains in this study

    Strain No.SerotypeStrain No.SerotypeStrain No.Serotype
    1131136127
    2232146228F
    333315A6328A
    443415B6429
    553515C6531
    66A3615F6632F
    76B3716F6732A
    86C3816A6833F
    96G3917F6933A
    107F4017A7033B
    117A4118F7133D
    127B4218A7234
    137C4318B7335F
    1484418C7435A
    159A4519A7535B
    169N4619F7635C
    179V4719B7736
    189L4819C7837
    1910A49207938
    2010F50218039
    2110B5122F8140
    2210C5222A8241F
    2311F5323A8341A
    2411A5423B8442
    2511B5523F8543
    2611C5624F8644
    2711D5724A8745
    2812F5824B8846
    2912A5925F8947F
    3012B6025A9047A
    下载: 导出CSV

    S2.   Reference sequence information used in this study

    SerotypeAccession no. of
    reference sequences
    IntegritySerotypeAccession no. of
    reference sequences
    Integrity
    1CR931632complete sequence19ACR931675complete sequence
    2CR931633complete sequence19FCR931678complete sequence
    3CR931634complete sequence19BCR931676complete sequence
    4CR931635complete sequence19CCR931677complete sequence
    5CR931637complete sequence20CR931679complete sequence
    6ACR931638complete sequence21CR931680complete sequence
    6BCR931639complete sequence22FCR931682complete sequence
    6CEF538714complete sequence22ACR931681complete sequence
    6DHM171374complete sequence23ACR931683complete sequence
    6E*KU168827partial sequence23BCR931684complete sequence
    6FKC832410complete sequence23FCR931685complete sequence
    6GKC832411complete sequence24FCR931688complete sequence
    6HKF597302partial sequence24ACR931686complete sequence
    7FCR931643complete sequence24BCR931687complete sequence
    7ACR931640complete sequence25FCR931690complete sequence
    7BCR931641complete sequence25ACR931689complete sequence
    7CCR931642complete sequence27CR931691complete sequence
    8CR931644complete sequence28FCR931693complete sequence
    9ACR931645complete sequence28ACR931692complete sequence
    9NCR931647complete sequence29CR931694complete sequence
    9VCR931648complete sequence31CR931695complete sequence
    9LCR931646complete sequence32FCR931697complete sequence
    10ACR931649complete sequence32ACR931696complete sequence
    10FCR931652complete sequence33FCR931702complete sequence
    10BCR931650complete sequence33ACR931698complete sequence
    10CCR931651complete sequence33BCR931699complete sequence
    11FCR931657complete sequence33CCR931700complete sequence
    11ACR931653complete sequence33DCR931701complete sequence
    11BCR931654complete sequence34CR931703complete sequence
    11CCR931655complete sequence35FCR931707complete sequence
    11DCR931656complete sequence35ACR931704complete sequence
    11EGU074953partial sequence35BCR931705complete sequence
    12FCR931660complete sequence35CCR931706complete sequence
    12ACR931658complete sequence35DKY084476complete sequence
    12BCR931659complete sequence36CR931708complete sequence
    13CR931661complete sequence37CR931709 AJ131985complete sequence
    14CR931662complete sequence38CR931710complete sequence
    15ACR931663complete sequence39CR931711complete sequence
    15BCR931664complete sequence40CR931712complete sequence
    15CCR931665complete sequence41FCR931714complete sequence
    15FCR931666complete sequence41ACR931713complete sequence
    16FCR931668complete sequence42CR931715complete sequence
    16ACR931667complete sequence43CR931716complete sequence
    17FCR931670complete sequence44CR931717complete sequence
    17ACR931669complete sequence45CR931718complete sequence
    18FCR931674complete sequence46CR931719complete sequence
    18ACR931671complete sequence47FCR931721complete sequence
    18BCR931672complete sequence47ACR931720complete sequence
    18CCR931673complete sequence
      Note. *Serotype 6E, a genetically defined entity, may not be phenotypically serotypes.
    下载: 导出CSV

    Table  1.   Recombinant reference plasmid parameters in this study

    No.Recombinant plasmids
    (containing serotype-specific
    target fragments)
    Target gene
    (Accession No.)
    Cloning
    vectors
    ConcentrationLODLOQStandard curveEfficiency (%)R2Instrument
    ng/µLcopies/µL
    17B/7C/40wzy (CR931642)pUC5760.01.95 × 10101.95 × 101101 − 109y = −3.52x + 41.0092.501gene9660
    210BwcrG (CR931650)pUC5762.92.04 × 10102.04 × 101101 − 109y = −3.44x + 40.7595.491gene9660
    310A/10C/34/35/43wcrC (CR931652)pUC5784.52.76 × 10102.76 × 101101 − 109y = −3.22x + 41.28100.241Roche480
    411F/15A/15B/15C/15FwchJ (CR931657)pUC5771.92.32 × 10102.32 × 101101 − 109y = −3.54x + 40.7091.500.998gene9660
    512A/12B/46wciI (CR931658)pUC5756.71.86 × 10101.86 × 101101 − 109y = −3.56x + 41.1790.771gene9660
    616Awzy (CR931667)pUC5766.62.15 × 10102.15 × 101102 − 109y = −3.51x + 42.1996.550.999Roche480
    717Awzy (CR931669)pUC5766.92.15 × 10102.15 × 100102 − 109y = −3.49x + 41.9296.150.999Roche480
    818B/18C/18FwciX (CR931674)pUC5772.72.35 × 10102.35 × 101101 − 109y = −3.53x + 42.1792.801gene9660
    918FwcxM (CR931674)pUC5759.21.94 × 10101.94 × 101101 − 109y = −3.33x + 40.1496.321Roche480
    1019B/19Cwzy (CR931676)pUC5778.32.47 × 10102.47 × 101101 − 109y = −3.59x + 41.7090.071gene9660
    1119CwchU (CR931677)pUC5755.31.77 × 10101.77 × 101101 − 109y = −3.43x + 39.9397.900.999Roche480
    127B/7C/24F/24B/40wzy' (CR931688)pUC5762.62.01 × 10102.01 × 101101 − 109y = −3.56x + 40.3695.450.999Roche480
    1325F/25A/38wzy (CR931689)pUC5748.91.58 × 10101.58 × 100101 − 109y = −3.27x + 38.75102.071genen9660
    1427wzy (CR931691)pUC5761.31.98 × 10101.98 × 100101 − 109y = −3.37x + 39.2697.990.996gene9660
    1518A/28AwciU (CR931692)pUC5779.02.54 × 10102.54 × 101102 − 109y = −3.36x + 41.5099.850.999Roche480
    1629wzy (CR931694)pUC5782.02.72 × 10102.72 × 101101 − 109y = −3.47x + 41.9696.850.998Roche480
    1732A/32Fwzy (CR931696)pUC5763.22.03 × 10102.03 × 100102 − 109y = −3.35x + 41.1399.850.999Roche480
    1833Cwzy (CR931700)pUC5761.81.20 × 10101.20 × 101101 − 109y = −3.40x + 39.7796.651gene9660
    1933B/33Dwzy (CR931699)pUC5764.02.06 × 10102.06 × 101102 − 109y = −3.28x + 39.45100.911gene9660
    2035F/34wcrO (CR931707)pUC5775.02.46 × 10102.46 × 101102 − 109y = −3.24x + 39.14101.800.999Roche480
    2135A/35C/42wzy (CR931706)pUC5797.23.13 × 10103.13 × 101102 − 109y = −3.30x + 39.1396.150.999Roche480
    2236wzy (CR931708)pUC5743.31.39 × 10101.39 × 101101 − 109y = −3.47x + 39.8994.001gene9660
    2341A/41Fwzy (CR931713)pUC5738.81.19 × 10101.19 × 102102 − 109y = −3.79x + 43.5191.800.999Roche480
    2441FwcrX (CR931714)pUC5759.31.90 × 10101.90 × 101101 − 109y = −3.29x + 41.77100.750.999Roche480
    2543wzy (CR931716)pUC5745.11.43 × 10101.43 × 101101 − 109y = −3.34x + 40.9599.361gene9660
    2645wzy (CR931718)pUC5744.51.38 × 10101.38 × 101102 − 109y = −3.62x + 42.6694.900.999Roche480
    2747Awzy (CR931720)pUC5753.21.64 × 10101.64 × 101102 − 109y = −3.61x + 43.1493.400.999Roche480
      Note. LOD, limit of detection; LOQ, the limit of quantitation.
    下载: 导出CSV

    Table  2.   Performance of serotyping assays in a panel of pneumococcal reference strains

    NO.Serotype (pneumococcal
    reference strains)
    Reference assay only[20,21]Reference assay and 27 additional assay
    serotypeserogroupserotypeserogroup
    1111
    2222
    3333
    4444
    5555
    66A6A/6F/6H6A/6F/6H
    76B6B/6E/6G6B/6E/6G
    86C6C6C
    96G6B/6E/6G6B/6E/6G
    107F7A/7F7A/7F
    117A7A/7F7A/7F
    127B7B/407B/40
    137C7C7C
    14888
    159A9A/9V9A/9V
    169N9L/9N9L/9N
    179V9A/9V9A/9V
    189L9L/9N9L/9N
    1910A10A10A
    2010F10F10F
    2110BUnidentified10B
    2210CUnidentified10C
    2311F11A/11D/11E/11F11F
    2411A11A/11D/11E/11F11A/11D/11E
    2511B11B/11C11B/11C
    2611C11B/11C11B/11C
    2711D11A/11D/11E/11F11A/11D/11E
    2812F12F/4412F/44
    2912AUnidentified12A/12B/46
    3012BUnidentified12A/12B/46
    31131313
    32141414
    3315A15A/15F15A/15F
    3415B15B/15C15B/15C
    3515C15B/15C15B/15C
    3615F15A/15F15A/15F
    3716F16F16F
    3816AUnidentified16A
    3917F17F17F
    4017AUnidentified17A
    4118F18A/18B/18C/18F18F
    4218A18A/18B/18C/18F18A
    4318B18A/18B/18C/18F18B/18C
    4418C18A/18B/18C/18F18B/18C
    4519A19A19A
    4619F19F19F
    4719BUnidentified19B
    4819CUnidentified19C
    49202020
    50212121
    5122F22F22F
    5222A22A22A
    5323A23A23A
    5423B23B23B
    5523F23F23F
    5624F24F/24A/24B24F/24B
    5724A24F/24A/24B24A
    5824B24F/24A/24B24F/24B
    5925FUnidentified25A/25F
    6025AUnidentified25A/25F
    6127Unidentified27
    6228F28A/28F28F
    6328A28A/28F28A
    6429Unidentified29
    65313131
    6632FUnidentified32A/32F
    6732AUnidentified32A/32F
    6833F33A/33F/3733A/33F
    6933A33A/33F/3733A/33F
    7033BUnidentified33B/33D
    7133DUnidentified33B/33D
    72343434
    7335F35F/47F35F
    7435A35A/35C/4235A/35C/42
    7535B35B/35D35B/35D
    7635C35A/35C/4235A/35C/42
    7736Unidentified36
    78373737
    79383838
    80393939
    8140Unidentified7B/40
    8241FUnidentified41F
    8341AUnidentified41A
    844235A/35C/4235A/35C/42
    8543Unidentified43
    864412F/4412F/44
    8745Unidentified45
    8846Unidentified12A/12B/12C/46
    8947F35F/47F47F
    9047AUnidentified47A
    下载: 导出CSV
  • [1] Wahl B, O'Brien KL, Greenbaum A, et al. Burden of Streptococcus pneumoniae and Haemophilus influenzae type b disease in children in the era of conjugate vaccines: global, regional, and national estimates for 2000-15. Lancet Glob Health, 2018; 6, e744−57. doi:  10.1016/S2214-109X(18)30247-X
    [2] Musher DM, Thorner AR. Community-acquired pneumonia. N Engl J Med, 2014; 371, 1619−28. doi:  10.1056/NEJMra1312885
    [3] Advisory Committee on Immunization Practices. Preventing pneumococcal disease among infants and young children. Recommendations of the Advisory Committee on Immunization Practices (ACIP). MMWR Recomm Rep, 2000; 49, 1−35.
    [4] Geno KA, Gilbert GL, Song JY, et al. Pneumococcal capsules and their types: past, present, and future. Clin Microbiol Rev, 2015; 28, 871−99. doi:  10.1128/CMR.00024-15
    [5] GPS. Serotypes. https://www.pneumogen.net/gps/serotypes.html. [2022-08-11].
    [6] Moore MR, Link-Gelles R, Schaffner W, et al. Effect of use of 13-valent pneumococcal conjugate vaccine in children on invasive pneumococcal disease in children and adults in the USA: analysis of multisite, population-based surveillance. Lancet Infect Dis, 2015; 15, 301−9. doi:  10.1016/S1473-3099(14)71081-3
    [7] Ladhani SN, Collins S, Djennad A, et al. Rapid increase in non-vaccine serotypes causing invasive pneumococcal disease in England and Wales, 2000-17: a prospective national observational cohort study. Lancet Infect Dis, 2018; 18, 441−51. doi:  10.1016/S1473-3099(18)30052-5
    [8] Pilishvili T, Lexau C, Farley MM, et al. Sustained reductions in invasive pneumococcal disease in the era of conjugate vaccine. J Infect Dis, 2010; 201, 32−41. doi:  10.1086/648593
    [9] Andrews N, Kent A, AMIN-Chowdhury Z, et al. Effectiveness of the seven-valent and thirteen-valent pneumococcal conjugate vaccines in England: the indirect cohort design, 2006-2018. Vaccine, 2019; 37, 4491−8. doi:  10.1016/j.vaccine.2019.06.071
    [10] Kaplan SL, Mason EO Jr, Wald ER, et al. Decrease of invasive pneumococcal infections in children among 8 children's hospitals in the United States after the introduction of the 7-valent pneumococcal conjugate vaccine. Pediatrics, 2004; 113, 443−9. doi:  10.1542/peds.113.3.443
    [11] Levy C, Varon E, Ouldali N, et al. Changes in invasive pneumococcal disease spectrum after 13-valent pneumococcal conjugate vaccine implementation. Clin Infect Dis, 2020; 70, 446−54.
    [12] Ouldali N, Varon E, Levy C, et al. Invasive pneumococcal disease incidence in children and adults in France during the pneumococcal conjugate vaccine era: an interrupted time-series analysis of data from a 17-year national prospective surveillance study. Lancet Infect Dis, 2021; 21, 137−47. doi:  10.1016/S1473-3099(20)30165-1
    [13] Reasonover A, Zulz T, Bruce MG, et al. The international circumpolar surveillance interlaboratory quality control program for Streptococcus pneumoniae, 1999 to 2008. J Clin Microbiol, 2011; 49, 138−43. doi:  10.1128/JCM.01238-10
    [14] Sørensen UB. Typing of pneumococci by using 12 pooled antisera. J Clin Microbiol, 1993; 31, 2097−100. doi:  10.1128/jcm.31.8.2097-2100.1993
    [15] Lovgren M, Talbot JA, Brandileone MC, et al. Evolution of an international external quality assurance model to support laboratory investigation of Streptococcus pneumoniae, developed for the SIREVA project in Latin America, from 1993 to 2005. J Clin Microbiol, 2007; 45, 3184−90. doi:  10.1128/JCM.00789-07
    [16] Konradsen HB. Validation of serotyping of Streptococcus pneumoniae in Europe. Vaccine, 2005; 23, 1368−73. doi:  10.1016/j.vaccine.2004.09.011
    [17] Kuch A, Gołȩbiewska A, Waśko I, et al. Usefulness of Pneumotest-Latex for direct serotyping of Streptococcus pneumoniae Isolates in clinical samples. J Clin Microbiol, 2014; 52, 2647−9. doi:  10.1128/JCM.00451-14
    [18] Slotved HC, Kaltoft M, Skovsted IC, et al. Simple, rapid latex agglutination test for serotyping of pneumococci (Pneumotest-Latex). J Clin Microbiol, 2004; 42, 2518−22. doi:  10.1128/JCM.42.6.2518-2522.2004
    [19] Pai R, Gertz RE, Beall B. Sequential multiplex PCR approach for determining capsular serotypes of Streptococcus pneumoniae isolates. J Clin Microbiol, 2006; 44, 124−31. doi:  10.1128/JCM.44.1.124-131.2006
    [20] Pimenta FC, Roundtree A, Soysal A, et al. Sequential triplex real-time PCR assay for detecting 21 pneumococcal capsular serotypes that account for a high global disease burden. J Clin Microbiol, 2013; 51, 647−52. doi:  10.1128/JCM.02927-12
    [21] Velusamy S, Tran T, Mongkolrattanothai T, et al. Expanded sequential quadriplex real-time polymerase chain reaction (PCR) for identifying pneumococcal serotypes, penicillin susceptibility, and resistance markers. Diagn Microbiol Infect Dis, 2020; 97, 115037. doi:  10.1016/j.diagmicrobio.2020.115037
    [22] Leung MH, Bryson K, Freystatter K, et al. Sequetyping: serotyping Streptococcus pneumoniae by a single PCR sequencing strategy. J Clin Microbiol, 2012; 50, 2419−27. doi:  10.1128/JCM.06384-11
    [23] National Center for Immunization and Respiratory Diseases. Multiplex conventional PCR schemes for pneumococcal serotype deduction. https://www.cdc.gov/streplab/pneumococcus/resources.html. [2022-08-21].
    [24] Park D, Kim SH, Bae IK, et al. Evaluation of modified sequential multiplex PCR for Streptococcus pneumoniae serotyping. Jpn J Infect Dis, 2019; 72, 224−7. doi:  10.7883/yoken.JJID.2018.422
    [25] Garcia-Garcia S, Perez-Arguello A, Henares D, et al. Rapid identification, capsular typing and molecular characterization of Streptococcus pneumoniae by using whole genome nanopore sequencing. BMC Microbiol, 2020; 20, 347. doi:  10.1186/s12866-020-02032-x
    [26] Lyu S, Hu HL, Yang YH, et al. A systematic review about Streptococcus pneumoniae serotype distribution in children in mainland of China before the PCV13 was licensed. Expert Rev Vaccines, 2017; 16, 997−1006. doi:  10.1080/14760584.2017.1360771
    [27] Chinese Preventive Medicine Association, Vaccine and Immunology Branch of the Chinese Preventive Medicine Association. Expert consensus on immunoprophylaxis of pneumococcal disease (2020 version). Chin J Prev Med, 2020; 54, 1315−63. (In Chinese
    [28] Price MN, Dehal PS, Arkin AP. FastTree 2-approximately maximum-likelihood trees for large alignments. PLoS One, 2010; 5, e9490. doi:  10.1371/journal.pone.0009490
    [29] Letunic I, Bork P. Interactive tree of life (iTOL) v3: an online tool for the display and annotation of phylogenetic and other trees. Nucleic Acids Res, 2016; 44, W242−5. doi:  10.1093/nar/gkw290
    [30] Tvedskov ESF, Hovmand N, Benfield T, et al. Pneumococcal carriage among children in low and lower-middle-income countries: A systematic review. Int J Infect Dis, 2022; 115, 1−7. doi:  10.1016/j.ijid.2021.11.021
    [31] Pholwat S, Sakai F, Turner P, et al. Development of a TaqMan Array Card for Pneumococcal Serotyping on Isolates and Nasopharyngeal Samples. J Clin Microbiol, 2016; 54, 1842−50. doi:  10.1128/JCM.00613-16
    [32] Sakai F, Sonaty G, Watson D, et al. Development and characterization of a synthetic DNA, NUversa, to be used as a standard in quantitative polymerase chain reactions for molecular pneumococcal serotyping. FEMS Microbiol Lett, 2017; 364, fnx173.
    [33] Dhoubhadel BG, Yasunami M, Yoshida LM, et al. A novel high-throughput method for molecular serotyping and serotype-specific quantification of Streptococcus pneumoniae using a nanofluidic real-time PCR system. J Med Microbiol, 2014; 63, 528−39. doi:  10.1099/jmm.0.071464-0
    [34] Kakiuchi S, Suzuki M, Dhoubhadel BG, et al. Accuracy of High-Throughput Nanofluidic PCR-Based Pneumococcal Serotyping and Quantification Assays Using Sputum Samples for Diagnosing Vaccine Serotype Pneumococcal Pneumonia: Analyses by Composite Diagnostic Standards and Bayesian Latent Class Models. J Clin Microbiol, 2018; 56, e01874−17.
    [35] Downs SL, Madhi SA, Van der Merwe L, et al. High-throughput nanofluidic real-time PCR to discriminate Pneumococcal Conjugate Vaccine (PCV)-associated serogroups 6, 18, and 22 to serotypes using modified oligonucleotides. Sci Rep, 2021; 11, 23728. doi:  10.1038/s41598-021-03127-9
    [36] Du QQ, Zeng HL, Yuan L, et al. One cross-sectional investigation revealed that non-vaccine serotypes of Streptococcus pneumoniae could be identified more frequently in elderly Chinese people. Vaccine, 2021; 39, 3304−9. doi:  10.1016/j.vaccine.2021.02.053
    [37] Bentley SD, Aanensen DM, Mavroidi A, et al. Genetic analysis of the capsular biosynthetic locus from all 90 pneumococcal serotypes. PLoS Genet, 2006; 2, e31. doi:  10.1371/journal.pgen.0020031
    [38] Kong F, Wang W, Tao J, et al. A molecular-capsular-type prediction system for 90 Streptococcus pneumoniae serotypes using partial cpsA-cpsB sequencing and wzy- or wzx-specific PCR. J Med Microbiol, 2005; 54, 351−6. doi:  10.1099/jmm.0.45924-0
    [39] Che J, Lu JX, Li WG, et al. A New High-throughput Real-time PCR Assay for the Screening of Multiple Antimicrobial Resistance Genes in Broiler Fecal Samples from China. Biomed Environ Sci, 2019; 32, 881−92.
    [40] Huang Q, Chen D, Du C, et al. Highly multiplex PCR assays by coupling the 5'-flap endonuclease activity of Taq DNA polymerase and molecular beacon reporters. Proc Natl Acad Sci U S A. 2022; 119, e2110672119.
  • [1] YIN Cai Hong, SONG Zhan Yun, LIU Xing Xing, WANG Xiao Mu, WANG Ying, GAO Cheng Cheng, SONG Xiu Ling, FENG Xin.  Comparison of Microdroplet Digital PCR Assays with Real-time Fluorescence Quantitative PCR for Clostridioides difficile Detection . Biomedical and Environmental Sciences, 2023, 36(7): 653-657. doi: 10.3967/bes2023.094
    [2] GUO Geng Lin, GAO Hua Sheng, WANG Zhuo Hao, TAN Zhong Ming, HAN Ming Xiao, CHEN Qi, DU Hong, ZHANG Wei, ZHANG Hai Fang.  Genomic Characterization of a Streptococcus suis Serotype 2 Isolated from a Human Patient . Biomedical and Environmental Sciences, 2022, 35(8): 760-763. doi: 10.3967/bes2022.099
    [3] LIAO Lei, SHI Wen, MA Chao, TANG Wen Lian, QIAN Qi Lan, WANG Yu, LI Jiao Jiao, SHEN Jin Yang, JI Jing, MA Jin Ming, GAO Song.  Duplex Detection of Vibrio Cholerae and Vibrio Parahaemolyticus by Real-time Recombinase Polymerase Amplification . Biomedical and Environmental Sciences, 2022, 35(12): 1161-1165. doi: 10.3967/bes2022.148
    [4] WEI Xiao, LI Yan, LU Xin, ZHAO Rong Tao, YUAN Zheng Quan, SHI Hua, ZHAO Xiang Na.  Rapid Detection of Yersinia pestis by Real-time Recombinase-aided Amplification . Biomedical and Environmental Sciences, 2021, 34(4): 309-313. doi: 10.3967/bes2021.040
    [5] XIAO Kang, YANG Xue Hua, ZOU Wen Quan, DONG Xiao Ping, SHI Qi.  Assessment of the Sensitivity and Specificity of the Established Real-time Quaking-induced Conversion (RT-QuIC) Technique in Chinese CJD Surveillance . Biomedical and Environmental Sciences, 2020, 33(8): 620-622. doi: 10.3967/bes2020.081
    [6] CHE Jie, LU Jin Xing, LI Wen Ge, ZHANG Yun Fei, ZHAO Xiao Fei, YUAN Min, BAI Xue Mei, CHEN Xia, LI Juan.  A New High-throughput Real-time PCR Assay for the Screening of Multiple Antimicrobial Resistance Genes in Broiler Fecal Samples from China . Biomedical and Environmental Sciences, 2019, 32(12): 881-892. doi: 10.3967/bes2019.111
    [7] CHU Mei Fen, LIU Xiao Xiang, ZHANG Shao Ni, HUANG Yan Ying, DU Peng, WANG Li Fang, JI Lei, YAN Jie, SUN Ai Hua.  Molecular Characterization and Correlation with β-lactam Resistance of Streptococcus pneumonia Isolates in Hangzhou, China . Biomedical and Environmental Sciences, 2018, 31(5): 389-393. doi: 10.3967/bes2018.050
    [8] WANG Hui, ZHANG Jing, HU Shao Hua, TAN Sheng Zhi, ZHANG Bo, ZHOU Hong Mei, PENG Rui Yun.  Real-time Microwave Exposure Induces Calcium Efflux in Primary Hippocampal Neurons and Primary Cardiomyocytes . Biomedical and Environmental Sciences, 2018, 31(8): 561-571. doi: 10.3967/bes2018.077
    [9] XIE Na, CHEN Zhao Yun, CHEN Tao, ZHU Bing Qing, XU Li, GAO Yuan, ZHANG Ai Yu, ZHAO Pan, LIU Ji Wen, SHAO Zhu Jun.  A Cross-sectional Survey Assessing Carriage of Streptococcus pneumoniae in a Healthy Population in Xinjiang Uygur Autonomous Region of China . Biomedical and Environmental Sciences, 2018, 31(3): 233-237. doi: 10.3967/bes2018.029
    [10] SHAO Nan, LI Fan, NIE Kai, FU Shi Hong, ZHANG Wei Jia, HE Ying, LEI Wen Wen, WANG Qian Ying, LIANG Guo Dong, CAO Yu Xi, WANG Huan Yu.  TaqMan Real-time RT-PCR Assay for Detecting and Differentiating Japanese Encephalitis Virus . Biomedical and Environmental Sciences, 2018, 31(3): 208-214. doi: 10.3967/bes2018.026
    [11] LI Shao Li, SUN Hong Mei, ZHU Bao Li, LIU Fei, ZHAO Han Qing.  Whole Genome Analysis Reveals New Insights into Macrolide Resistance in Mycoplasma pneumoniae . Biomedical and Environmental Sciences, 2017, 30(5): 343-350. doi: 10.3967/bes2017.045
    [12] HU Shao Hua, WANG Hui, LU Li, ZHOU Hong Mei, WANG Chang Zhen, GAO Ya Bing, DONG Ji, PENG Rui Yun.  Real-time Assessment of Cytosolic, Mitochondrial, and Nuclear Calcium Levels Change in Rat Pheochromocytoma Cells during Pulsed Microwave Exposure Using a Genetically Encoded Calcium Indicator . Biomedical and Environmental Sciences, 2017, 30(12): 927-931. doi: 10.3967/bes2017.125
    [13] CAO Yu Xi, HE Xiao Xia, FU Shi Hong, HE Ying, LI Hao, GAO Xiao Yan, LIANG Guo Dong.  Real-time RT-PCR Assay for the Detection of Culex flavivirus . Biomedical and Environmental Sciences, 2015, 28(12): 917-919. doi: 10.3967/bes2015.019
    [14] LI Hao, CAO Yu Xi, HE Xiao Xia, FU Shi Hong, LYU Zhi, HE Ying, GAO Xiao Yan, LIANG Guo Dong, WANG Huan Yu.  Real-time RT-PCR Assay for the detection of Tahyna Virus . Biomedical and Environmental Sciences, 2015, 28(5): 374-377. doi: 10.3967/bes2015.052
    [15] YOU Yuan Hai, WANG Hai Bin, TAO Xiao Xia, SONG Yan Yan, MENG Fan Liang, YAN Xiao Mei, LUO Feng Ji, ZHANG Jian Zhong.  Antimicrobial Susceptibility of Streptococcus sp. to Quinupristin-dalfopristin in China . Biomedical and Environmental Sciences, 2014, 27(5): 388-390. doi: 10.3967/bes2014.065
    [16] NIU Pei Hua, ZHANG Chen, WANG Ji, TAN Wen Jie, MA Xue Jun.  Detection and Identification of Six Foodborne Bacteria by Two-tube Multiplex Real Time PCR and Melting Curve Analysis . Biomedical and Environmental Sciences, 2014, 27(10): 770-778. doi: 10.3967/bes2014.112
    [17] JIANG Yi, LIU Hai Can, ZHENG Hua Jun, TANG Biao, DOU Xiang Feng, ZHAO Xiu Qin, ZHU Yong Qiang, LU Bing, WANG Sheng Yue, DONG Hai Yan, ZHAO Guo Ping, ZHANG Yuan Yuan, KAN Biao, WAN Kang Lin.  Evaluation of Four Candidate VNTR Loci for Genotyping 225 Chinese Clinical Mycobacterium Tuberculosis Complex Strains . Biomedical and Environmental Sciences, 2012, 25(1): 82-90. doi: 10.3967/0895-3988.2012.01.012
    [18] ZHAO Fei, CAO Bin, HE Li Hua, YIN Yu Dong, TAO Xiao Xia, SONG Shu Fan, MENG Fan Liang, ZHANG Jian Zhong.  Evaluation of a New Real-time PCR Assay for Detection of Mycoplasma Pneumoniae in Clinical Specimens . Biomedical and Environmental Sciences, 2012, 25(1): 77-81. doi: 10.3967/0895-3988.2012.01.011
    [19] YA-LI BEN, GU-ZHEN CUI, CHEN LI, RUI HAN, JIE ZHANG, QING-YE ZHANG, JIAN WAN, DE-LI LIU.  Expression,Purification,Characteristics and Homology Modeling of the HMGS from Streptococcus pneumoniae . Biomedical and Environmental Sciences, 2009, 22(3): 229-236.
    [20] ZENG-HUI WU, YONG-LIANG LOU, YI-YU LU, JIE YAN.  Development of Quantitative Real-time Polymerase Chain Reaction for the Detection of Vibrio vulnificus Based on Hemolysin (vvhA) Coding System . Biomedical and Environmental Sciences, 2008, 21(4): 296-301.
  • 22340+Supplementary Materials.pdf
  • 加载中
图(5) / 表ll (4)
计量
  • 文章访问数:  855
  • HTML全文浏览量:  396
  • PDF下载量:  65
  • 被引次数: 0
出版历程
  • 收稿日期:  2022-11-09
  • 录用日期:  2023-01-09
  • 网络出版日期:  2023-09-29
  • 刊出日期:  2023-09-20

Establishment and Modification of Ninety-seven Pneumococcal Serotyping Assays Based on Quantitative Real-time Polymerase Chain Reaction

doi: 10.3967/bes2023.078
    基金项目:  This work was supported by a grant from Beijing Municipal Natural Science Foundation [L212011] and National Institute for Communicable Disease Control and Prevention, Chinese Center for Disease Control and Prevention [131031102000210003 & 102393230020020000002].
    作者简介:

    CHE Jie, female, born in 1989, Master, majoring in prevention and control of infectious diseases

    通讯作者: SHAO Zhu Jun, E-mail: shaozhujun@icdc.cn

English Abstract

CHE Jie, CHEN Bo Han, XU Li, GAO Yuan, YUE Meng Meng, CHEN Zi Man, ZHANG Mao Jun, SHAO Zhu Jun. Establishment and Modification of Ninety-seven Pneumococcal Serotyping Assays Based on Quantitative Real-time Polymerase Chain Reaction[J]. Biomedical and Environmental Sciences, 2023, 36(9): 787-799. doi: 10.3967/bes2023.078
Citation: CHE Jie, CHEN Bo Han, XU Li, GAO Yuan, YUE Meng Meng, CHEN Zi Man, ZHANG Mao Jun, SHAO Zhu Jun. Establishment and Modification of Ninety-seven Pneumococcal Serotyping Assays Based on Quantitative Real-time Polymerase Chain Reaction[J]. Biomedical and Environmental Sciences, 2023, 36(9): 787-799. doi: 10.3967/bes2023.078
    • Streptococcus pneumoniae (or pneumococcus) is a respiratory pathogen that affects humans. More than two serotypes of pneumococcus can coexist at the site of the naso-oropharynx. Pneumococcus is a bacterium that has been linked to a wide range of pneumococcal diseases (PD), ranging from non-invasive PD (NIPD), such as sinusitis, otitis media, and pneumonia, to serious invasive PD (IPD), particularly in children of age < 5 years and individuals aged > 65 years. Pneumococcus is the primary pathogen of community-acquired pneumonia, lower respiratory tract infections, and childhood pneumonia[1-3]. Capsular polysaccharide (CPS) is the most critical virulence factor of pneumococci, and > 100 serotypes of it have been identified and reported based on the biochemical and antigenic properties of the pneumococcal CPSs[4,5]. The pneumococcal conjugate vaccine (PCV) is highly effective in preventing IPD caused by vaccine serotypes (VTs). PCV vaccination can reduce the carriage rate as well as the transmission route of pneumococci among populations, which is referred to as herd immunity[6-9]. As the carriage rate of pneumococci VTs decreases, other serotypes (such as non-VTs [NVTs]) become prevalent, which is referred to as "serotype replacement". A multicenter study conducted in the United States revealed a 66% decrease in the overall (all serotypes) numbers of IPD cases among children aged < 2 years from the baseline (1994–2000) until 2002. However, the number of IPD cases involving NVT increased by 66% from the baseline (NVTs only)[10]. In the United States, dramatic reductions (45% and 94%, respectively) have been recorded in overall and PCV7-type IPD after PCV7 introduction in children aged < 5 years between 1998–1999 and 2007. However, the rate of IPD caused by NVTs increased by 128%[8]. Between 2001 and 2017, the cases of major NVTs in France increased from 10.5% to 41.8% for the overall IPD cases, with the numbers of cases increasing from 5.3% to 58.3% in children aged < 2 years and serotype 24F becoming the most predominant serotype of IPD in children aged < 2 years[11,12]. The protective effect of PCV is significantly compromised by an increase in NVTs resulting from "serotype replacement"[8,10,11]. "Serotype replacement" advocates the creation and application of next-generation pneumococcal vaccines and implies that serotype surveillance is essential for preventing and controlling PD.

      Serotype-based serological approaches (or phenotypic methods) that rely on serotype-specific antisera or monoclonal antibodies (mAbs), molecular technologies based on cps loci such as sequential multiplex PCR (mPCR), multiplex qPCR (mqPCR), and whole-genome sequencing are already being used for bacterial serotyping in the age of genome sequencing, which includes pneumococcal serotyping[13-26]. Based on the reaction between antibodies against the pneumococcal capsule, the Quellung reaction is considered the gold standard for pneumococcal serotyping[13,14]. However, due to the high costs, experience dependency, and isolation of pure colonies, this method cannot be readily applied to most laboratories and is considered more appropriate for quality control in reference laboratories[13-16]. Owing to its practicality and instrument independency, the latex agglutination reaction has been suggested as the most practicable technique for pneumococcal serotyping[17,18]. Briefly, equal quantities of latex reagent and bacterial culture are mixed, and the resultant agglutination reaction is read within 5–10 s. However, there are numerous pneumococcal serotypes. According to the chessboard scheme, a single isolate should be typed by pool antisera first and then be further typed by type and factor antisera. However, due to the high costs of the pneumococcal latex agglutination kit (only 14 pools antisera kit up to $10,000, 75 tests/bottle), not all laboratories can afford it. Due to its simplicity, affordability, and lack of dependency on culture-based techniques, the PCR-based pneumococcal serotyping approach is frequently employed for pneumococcal surveillance[19-21]. Sequential mPCR and sequential mqPCR methodologies have been developed for the most prevalent serotypes in Active Bacterial Core Surveillance (ABCs) to track the dynamics of pneumococcal serotypes. The 64 serotypes identified using the sequential mqPCR so far include 34 individual serotypes and 13 minor serogroups[21]. Based on the prevalence of IPD serotypes across different countries and regions, similar strategies were studied, optimized, and applied in regions such as Latin America, Africa, and Asia[23,24]. However, previously reported PCR- or qPCR-based pneumococcal serotyping methods cover only limited serotypes, many of which have not yet been reported.

      Currently, there is no national surveillance system for PD or IPD in China[27], and most information on pneumococcal serotype prevalence comes from individuals or regional hospital IPD patients[26,27]. Moreover, the serotype prevalence reported to guide the development of pneumococcal serotype strategies may be biased. Therefore, there is a need for systematic analysis of the cps loci in different pneumococcal serotypes for rapid and easy typing with a high serotype coverage.

      In this study, we downloaded the reported cps loci sequences of pneumococcus and analyzed the structure and sequence of different serotypes by bioinformatics technology. A qPCR-based pneumococcal serotyping assay was developed and modified to cover 97 serotypes, which included 64 serotypes that have been previously reported and an additional 33 serotypes. A total of 27 novel serotyping target sequences were added to the previous serotyping system, which contained 46 serotyping target sequences. In addition, a total of 97 pneumococcal serotypes were typed into 52 individual serotypes and 20 serogroups. Here, we expounded on the process of sequence analysis and serotyping assay establishment and proved their feasibility in typing serotypes caused by S. pneumoniae using pure strain cultures. This approach is expected to facilitate the monitoring of the prevalence trend of pneumococcal serotypes and guide the development of pneumococcal vaccines and immunization strategies.

    • A panel of pneumococcal reference strains containing 90 pneumococcal serotypes was applied to evaluate the capability of pneumococcal serotyping (Supplementary Table S1, available in www.besjournal.com). All pneumococcal reference strain serotypes are already known. These strains are stored at the Department of Respiratory Infectious Diseases, National Institute of Communicable Disease Control and Prevention, Chinese Center for Disease Control and Prevention.

      Table S1.  Information of pneumococcal reference strains in this study

      Strain No.SerotypeStrain No.SerotypeStrain No.Serotype
      1131136127
      2232146228F
      333315A6328A
      443415B6429
      553515C6531
      66A3615F6632F
      76B3716F6732A
      86C3816A6833F
      96G3917F6933A
      107F4017A7033B
      117A4118F7133D
      127B4218A7234
      137C4318B7335F
      1484418C7435A
      159A4519A7535B
      169N4619F7635C
      179V4719B7736
      189L4819C7837
      1910A49207938
      2010F50218039
      2110B5122F8140
      2210C5222A8241F
      2311F5323A8341A
      2411A5423B8442
      2511B5523F8543
      2611C5624F8644
      2711D5724A8745
      2812F5824B8846
      2912A5925F8947F
      3012B6025A9047A

      An overnight culture was prepared in Columbia agar plate supplemented with sheep blood (PB0123A, Thermo Fisher Oxoid, Basingstoke, UK) and incubated under 5% CO2 at 37 °C. The genomic DNA of the pneumococcal reference strains was extracted using the "Wizard" Genomic DNA Purification Kit (A1120, Promega Corporation, Madison, USA). In order to extract the DNA better, the culture products were pre-treated as follows: overnight colonies from the Columbia agar plate supplemented with sheep blood were collected and resuspended in 200 µL of the TE buffer with 10-µL inoculation loops. Then, a 100-µL mixture of lysozyme (RT401, TIANGEN, Beijing, China) and mutanolysin (M9901, Sigma-Aldrich, Darmstadt, Germany) was added and digested at 37 °C for 1 h. The lysozyme and mutanolysin reaction concentrations were 40 mg/mL and 75 U/mL, respectively. All extracted DNA was stored at −20 °C until further use.

    • The sequences of cps loci were downloaded from GeneBank (https://www.ncbi.nlm.nih.gov/). A database of cps loci sequences was generated, which covered 97 pneumococcal serotypes (Supplementary Table S2, available in www.besjournal.com). Based on the database, multiple sequence alignment was performed using the MAFFT v7.505. The maximum likelihood phylogenetic tree was generated with Fasttree 2.1.11[28], which contained 94 serotypes with a complete sequence of cps loci in the reference database. The tree is annotated as graphics using the iTol program[29]. Combined with the cps loci sequence annotation information, the gene structure diagrams were drawn with the RStudio 4.2.1. For potentially typed targets, multiple sequence alignment was performed with DNAMAN v9.0.

      Table S2.  Reference sequence information used in this study

      SerotypeAccession no. of
      reference sequences
      IntegritySerotypeAccession no. of
      reference sequences
      Integrity
      1CR931632complete sequence19ACR931675complete sequence
      2CR931633complete sequence19FCR931678complete sequence
      3CR931634complete sequence19BCR931676complete sequence
      4CR931635complete sequence19CCR931677complete sequence
      5CR931637complete sequence20CR931679complete sequence
      6ACR931638complete sequence21CR931680complete sequence
      6BCR931639complete sequence22FCR931682complete sequence
      6CEF538714complete sequence22ACR931681complete sequence
      6DHM171374complete sequence23ACR931683complete sequence
      6E*KU168827partial sequence23BCR931684complete sequence
      6FKC832410complete sequence23FCR931685complete sequence
      6GKC832411complete sequence24FCR931688complete sequence
      6HKF597302partial sequence24ACR931686complete sequence
      7FCR931643complete sequence24BCR931687complete sequence
      7ACR931640complete sequence25FCR931690complete sequence
      7BCR931641complete sequence25ACR931689complete sequence
      7CCR931642complete sequence27CR931691complete sequence
      8CR931644complete sequence28FCR931693complete sequence
      9ACR931645complete sequence28ACR931692complete sequence
      9NCR931647complete sequence29CR931694complete sequence
      9VCR931648complete sequence31CR931695complete sequence
      9LCR931646complete sequence32FCR931697complete sequence
      10ACR931649complete sequence32ACR931696complete sequence
      10FCR931652complete sequence33FCR931702complete sequence
      10BCR931650complete sequence33ACR931698complete sequence
      10CCR931651complete sequence33BCR931699complete sequence
      11FCR931657complete sequence33CCR931700complete sequence
      11ACR931653complete sequence33DCR931701complete sequence
      11BCR931654complete sequence34CR931703complete sequence
      11CCR931655complete sequence35FCR931707complete sequence
      11DCR931656complete sequence35ACR931704complete sequence
      11EGU074953partial sequence35BCR931705complete sequence
      12FCR931660complete sequence35CCR931706complete sequence
      12ACR931658complete sequence35DKY084476complete sequence
      12BCR931659complete sequence36CR931708complete sequence
      13CR931661complete sequence37CR931709 AJ131985complete sequence
      14CR931662complete sequence38CR931710complete sequence
      15ACR931663complete sequence39CR931711complete sequence
      15BCR931664complete sequence40CR931712complete sequence
      15CCR931665complete sequence41FCR931714complete sequence
      15FCR931666complete sequence41ACR931713complete sequence
      16FCR931668complete sequence42CR931715complete sequence
      16ACR931667complete sequence43CR931716complete sequence
      17FCR931670complete sequence44CR931717complete sequence
      17ACR931669complete sequence45CR931718complete sequence
      18FCR931674complete sequence46CR931719complete sequence
      18ACR931671complete sequence47FCR931721complete sequence
      18BCR931672complete sequence47ACR931720complete sequence
      18CCR931673complete sequence
        Note. *Serotype 6E, a genetically defined entity, may not be phenotypically serotypes.
    • Based on previously reported qPCR-based pneumococcal serotyping assays[21], novel serotyping targets sequence were selected to identify more individual serotypes or divide the strains into smaller serogroups. The primers and probes were assessed and selected by Primer Express 3.0.1. The GeneBank primer blast confirmed the sequence specificity of the primers and probes, and the probes with appropriate reporting dyes (FAM) and quenchers were synthesized at Sangon Biotech (Shanghai) and DIA-UP (Beijing). The target genes, primers, and probes sequences, as well as the optimal assay concentrations selected for serotyping, are shown in Supplementary Table S3, available in www.besjournal.com.

      The qPCR reactions were performed in a 20-μL solution, with each reaction mixture containing the following: 2× concentration probe qPCR mix (RR391A, TaKaRa, Beijing, China), forward primer, reverse primer, probe, sterilized water, and 2-μL DNA template. The optimal reaction concentrations of each primer and probe in each reaction are shown in Supplementary Table S3. The LightCycler 480 II (Roche Diagnostics, Switzerland) and Quant Gene9660 (BIOER, China) were used to amplify and detect the target genes. Each qPCR run included a negative control and an external positive control. The amplification conditions were 95 °C for 600 s, followed by 40 quantitative cycles of 95 °C for 15 s and 60 °C for 60 s.

    • The pUC57 cloning vectors (Sangon Biotech, Shanghai) were used to generate recombinant reference plasmids containing serotype-specific DNA sequence fragments for quantification. A unique recombinant reference plasmid was constructed for each target gene. A total of 27 recombinant reference plasmids were generated for this study's 27 novel serotyping assays. Several plasmid copies were calculated using the value for the plasmid molecular weight and the following formula:

      $$\begin{split} &{\rm{Recombinant}}\; {\rm{reference}}\;{\rm{plasmid}}\;({\rm{copies}/{\text{µ}}{\rm{L}}})=\\ &\quad\quad\frac{Avogadro’s\;number\times Recombinant\;reference\;plasmid\;concentration\;(\rm{n}\rm{g}/{{\text{μ}}}{\rm{L}})\times {10}^{-9}}{660\times Number\;of\;recombinant\;reference\;plasmid\;base\;pairs} \end{split}$$

      The DNase/RNase-free water (RT121, TIANGEN, Beijing, China) was used to generate recombinant reference plasmid serial dilutions, and 10 concentration gradients from 100 to 109 copies/µL of recombinant reference plasmids were generated. The concentration-gradient generation was performed in triplicate for standard curve construction and sensitivity assessment of the serotyping assay.

    • The experimental strains without the target gene were used as negative strains. Genomic DNA extracted from pneumococcal reference strains and 27 recombinant plasmids were used to evaluate the specificity of the qPCR assay.

      A mixture of two serotypes in a simulation sample was used to evaluate the ability of multiple serotypes co-existing in the same sample of this pneumococcal serotyping assay. Genomic DNA (1,000 copies/µL) of serotype 18F and serotype 29 (fluorescent signal marker: FAM) and genomic DNA (1,000 copies/µL) of serotype 16A and serotype 17F (different fluorescent signal markers: FAM and HEX) were mixed at different ratios of 0%, 5%, 25%, 50%, 75%, 95%, and 100%, respectively. Three replicate analyses were performed using the pneumococcal serotyping assay established in this study. To evaluate the ability to detect the rare serotypes in the presence of multiple serotypes.

    • LightCycler®480 software (version 1.5.0), Quant Gene 9600 software and WPS office (version 11.1.012763) were used to calculate the standard curve, efficiency (%), and R2, respectively. R Studio (version 4.2.1) was used for graphics drawing, which included the gene structure of pneumococcal cps loci and serotyping interpretation of pneumococcal cps loci, as annotated with Adobe Illustrator (version 25.2.1).

    • The phylogenetic tree and gene structure of 94 serotype pneumococcal cps loci sequences were constructed (Figure 1). All serotypes (except serotype 3) have polymerase (wzy) and flippase (wzx). The SNP-based phylogenetic tree was constructed for wzy and wzx to discriminate the capacity as pneumococcal serotyping targets (Supplementary Figure S1, available in www.besjournal.com). In addition to the previously reported qPCR-based pneumococcal serotyping targets using wzy, 17 novel serotyping target fragments by wzy, 7B/7C/40, 7B/7C/24F/24B/40, 16A, 17A, 19B/19C, 25F/25A/38, 27, 29, 32F/32A, 33C, 33B/33D, 35A/35C/42, 36, 41A/41F, 43, 45, and 47A, were added for pneumococcal serotyping. For serotypes that could not be distinguished by wzy and wzx, potential serotyping targets were selected based on the presence or absence of serotype-specific genes and sequence identity in different serotype cps loci. A total of 10 novel serotyping targets were added for 10B(wcrG), 10A/10C/34/35F/43(wcrC), 11F/15A/15B/15C/15F(wchJ), 12A/12B/46(wciI), 18B/18C/18F(wciX), 18F(wcxM), 19C(wchU), 18A/28A(wciU), 35F/34(wcrO), and 41F(wcrX). Twenty-seven novel qPCR serotyping target sequences were considered in addition to the pneumococcal qPCR serotyping system (Supplementary Table S3).

      Figure 1.  Maximum likelihood phylogenetic tree and the gene structure of pneumococcal cps loci. (A) Phylogenetic tree (Maximum likelihood phylogeny) of 94 serotype pneumococcal cps loci sequence; (B) The gene structure of 94 serotype pneumococcal cps loci sequence. All serotypes contained the regulatory region genes wzg, wzh, wzd, and wze (cpsA-D, light green) and serotype-specific region genes, beginning with an initial sugar transferase (emerald green). The gene structure of S. pneumoniae cps loci is depicted in alignment by cpsA (wzg). The arrows represent the direction of genes, while the colors represent different gene functions.

    • A total of 27 novel qPCR serotyping target sequences were supplemented in the pneumococcal qPCR serotyping system. Combined with previously reported 46 serotyping assays, there were 73 serotyping target sequences for pneumococcal serotyping. A total of 97 pneumococcal serotypes could be typed, of which 52 were identified as individual serotypes, while the remaining 45 serotypes belonged to 20 serogroups (Figure 2, Supplementary Table S3). As shown in Figure 2, a pneumococcal serotyping process covering 97 serotypes is formed, and the strains could be typed by the serotyping assays corresponding to the serotype/serogroup. Of the 97 serotypes, 64 serotypes could be typed by only one reaction, of which 38 were identified as individual serotypes and 26 as 12 serogroups. A total of 16 novel typing assays were designed in this study. Twenty-three serotypes could be typed by 2 reactions, 10 by 3 reactions, and only 10C required identification by 4 reactions.

      Figure 2.  Primers/probes and serotyping interpretation of pneumococcus.

    • A total of 27 novel recombinant reference plasmids with specific fragments were constructed in this study. Real-time PCR assays performed on these plasmids gave a limit of detection (LOD), the limit of quantitation (LOQ), and the unique linear dynamic range for each target gene and standard curve parameters are listed in Table 1. The parameter of the standard curve revealed a good relationship between the logarithmic value of recombinant plasmid diluted concentration and the Cq (quantification cycle) value. An excellent LOQs in a linear dynamic range of all recombinant plasmids, 101/102–101/109 (Supplementary Figure S2, available in www.besjournal.com). The LODs ranged from 1 to 100 copies/reaction, indicating good detectability in this study.

      Table 1.  Recombinant reference plasmid parameters in this study

      No.Recombinant plasmids
      (containing serotype-specific
      target fragments)
      Target gene
      (Accession No.)
      Cloning
      vectors
      ConcentrationLODLOQStandard curveEfficiency (%)R2Instrument
      ng/µLcopies/µL
      17B/7C/40wzy (CR931642)pUC5760.01.95 × 10101.95 × 101101 − 109y = −3.52x + 41.0092.501gene9660
      210BwcrG (CR931650)pUC5762.92.04 × 10102.04 × 101101 − 109y = −3.44x + 40.7595.491gene9660
      310A/10C/34/35/43wcrC (CR931652)pUC5784.52.76 × 10102.76 × 101101 − 109y = −3.22x + 41.28100.241Roche480
      411F/15A/15B/15C/15FwchJ (CR931657)pUC5771.92.32 × 10102.32 × 101101 − 109y = −3.54x + 40.7091.500.998gene9660
      512A/12B/46wciI (CR931658)pUC5756.71.86 × 10101.86 × 101101 − 109y = −3.56x + 41.1790.771gene9660
      616Awzy (CR931667)pUC5766.62.15 × 10102.15 × 101102 − 109y = −3.51x + 42.1996.550.999Roche480
      717Awzy (CR931669)pUC5766.92.15 × 10102.15 × 100102 − 109y = −3.49x + 41.9296.150.999Roche480
      818B/18C/18FwciX (CR931674)pUC5772.72.35 × 10102.35 × 101101 − 109y = −3.53x + 42.1792.801gene9660
      918FwcxM (CR931674)pUC5759.21.94 × 10101.94 × 101101 − 109y = −3.33x + 40.1496.321Roche480
      1019B/19Cwzy (CR931676)pUC5778.32.47 × 10102.47 × 101101 − 109y = −3.59x + 41.7090.071gene9660
      1119CwchU (CR931677)pUC5755.31.77 × 10101.77 × 101101 − 109y = −3.43x + 39.9397.900.999Roche480
      127B/7C/24F/24B/40wzy' (CR931688)pUC5762.62.01 × 10102.01 × 101101 − 109y = −3.56x + 40.3695.450.999Roche480
      1325F/25A/38wzy (CR931689)pUC5748.91.58 × 10101.58 × 100101 − 109y = −3.27x + 38.75102.071genen9660
      1427wzy (CR931691)pUC5761.31.98 × 10101.98 × 100101 − 109y = −3.37x + 39.2697.990.996gene9660
      1518A/28AwciU (CR931692)pUC5779.02.54 × 10102.54 × 101102 − 109y = −3.36x + 41.5099.850.999Roche480
      1629wzy (CR931694)pUC5782.02.72 × 10102.72 × 101101 − 109y = −3.47x + 41.9696.850.998Roche480
      1732A/32Fwzy (CR931696)pUC5763.22.03 × 10102.03 × 100102 − 109y = −3.35x + 41.1399.850.999Roche480
      1833Cwzy (CR931700)pUC5761.81.20 × 10101.20 × 101101 − 109y = −3.40x + 39.7796.651gene9660
      1933B/33Dwzy (CR931699)pUC5764.02.06 × 10102.06 × 101102 − 109y = −3.28x + 39.45100.911gene9660
      2035F/34wcrO (CR931707)pUC5775.02.46 × 10102.46 × 101102 − 109y = −3.24x + 39.14101.800.999Roche480
      2135A/35C/42wzy (CR931706)pUC5797.23.13 × 10103.13 × 101102 − 109y = −3.30x + 39.1396.150.999Roche480
      2236wzy (CR931708)pUC5743.31.39 × 10101.39 × 101101 − 109y = −3.47x + 39.8994.001gene9660
      2341A/41Fwzy (CR931713)pUC5738.81.19 × 10101.19 × 102102 − 109y = −3.79x + 43.5191.800.999Roche480
      2441FwcrX (CR931714)pUC5759.31.90 × 10101.90 × 101101 − 109y = −3.29x + 41.77100.750.999Roche480
      2543wzy (CR931716)pUC5745.11.43 × 10101.43 × 101101 − 109y = −3.34x + 40.9599.361gene9660
      2645wzy (CR931718)pUC5744.51.38 × 10101.38 × 101102 − 109y = −3.62x + 42.6694.900.999Roche480
      2747Awzy (CR931720)pUC5753.21.64 × 10101.64 × 101102 − 109y = −3.61x + 43.1493.400.999Roche480
        Note. LOD, limit of detection; LOQ, the limit of quantitation.

      All 27 recombinant reference plasmids and reference strains demonstrated amplification and were identified as the accurate serotype/subserogroup, while the remaining serotypes did not demonstrate any specific amplification curves.

      A total of 73 pneumococcal serotyping targets sequence were used in this study (Figure 2, Supplementary Table S3, available in www.besjournal.com), and 27 novel additional serotyping assays were developed. The results of a panel of 90 serotypes of pneumococcal reference strains are shown in Table 2. All 90 serotypes of pneumococci were identified, of which 50 could be identified as individual serotypes and the remaining 40 to 20 small serogroups, respectively. The specificity of qPCR assays was 100%.

      Table 2.  Performance of serotyping assays in a panel of pneumococcal reference strains

      NO.Serotype (pneumococcal
      reference strains)
      Reference assay only[20,21]Reference assay and 27 additional assay
      serotypeserogroupserotypeserogroup
      1111
      2222
      3333
      4444
      5555
      66A6A/6F/6H6A/6F/6H
      76B6B/6E/6G6B/6E/6G
      86C6C6C
      96G6B/6E/6G6B/6E/6G
      107F7A/7F7A/7F
      117A7A/7F7A/7F
      127B7B/407B/40
      137C7C7C
      14888
      159A9A/9V9A/9V
      169N9L/9N9L/9N
      179V9A/9V9A/9V
      189L9L/9N9L/9N
      1910A10A10A
      2010F10F10F
      2110BUnidentified10B
      2210CUnidentified10C
      2311F11A/11D/11E/11F11F
      2411A11A/11D/11E/11F11A/11D/11E
      2511B11B/11C11B/11C
      2611C11B/11C11B/11C
      2711D11A/11D/11E/11F11A/11D/11E
      2812F12F/4412F/44
      2912AUnidentified12A/12B/46
      3012BUnidentified12A/12B/46
      31131313
      32141414
      3315A15A/15F15A/15F
      3415B15B/15C15B/15C
      3515C15B/15C15B/15C
      3615F15A/15F15A/15F
      3716F16F16F
      3816AUnidentified16A
      3917F17F17F
      4017AUnidentified17A
      4118F18A/18B/18C/18F18F
      4218A18A/18B/18C/18F18A
      4318B18A/18B/18C/18F18B/18C
      4418C18A/18B/18C/18F18B/18C
      4519A19A19A
      4619F19F19F
      4719BUnidentified19B
      4819CUnidentified19C
      49202020
      50212121
      5122F22F22F
      5222A22A22A
      5323A23A23A
      5423B23B23B
      5523F23F23F
      5624F24F/24A/24B24F/24B
      5724A24F/24A/24B24A
      5824B24F/24A/24B24F/24B
      5925FUnidentified25A/25F
      6025AUnidentified25A/25F
      6127Unidentified27
      6228F28A/28F28F
      6328A28A/28F28A
      6429Unidentified29
      65313131
      6632FUnidentified32A/32F
      6732AUnidentified32A/32F
      6833F33A/33F/3733A/33F
      6933A33A/33F/3733A/33F
      7033BUnidentified33B/33D
      7133DUnidentified33B/33D
      72343434
      7335F35F/47F35F
      7435A35A/35C/4235A/35C/42
      7535B35B/35D35B/35D
      7635C35A/35C/4235A/35C/42
      7736Unidentified36
      78373737
      79383838
      80393939
      8140Unidentified7B/40
      8241FUnidentified41F
      8341AUnidentified41A
      844235A/35C/4235A/35C/42
      8543Unidentified43
      864412F/4412F/44
      8745Unidentified45
      8846Unidentified12A/12B/12C/46
      8947F35F/47F47F
      9047AUnidentified47A
    • The detection capability of the pneumococcal serotyping assay for the coexistence of multiple serotypes has demonstrated that this assay has good multi-serotype analytical capability. A relatively rare serotype, as low as 5% of the simulation DNA samples, can be detected, regardless of whether the target is the same or from different fluorescent channels.

    • PD is a global public health concern with a serious burden of IPD. However, there are several problems and challenges in the research and prevention of PD[12]. There has been a persistent increase in the proportion of IPD caused by NVTs of pneumococci as well as that in the rate of naso-oropharynx carriage of NVTs after vaccine application, with a naturally higher carriage prevalence of NVTs in some regions and certain populations in the pre-PCV application[30]. As the basis for PD research and prevention, the existing pneumococcal serotyping methods have several shortcomings. Therefore, there is a need to establish a rapid, accurate, high-throughput, and high serotype coverage of culture-independent pneumococcal serotyping methods for the research and prevention of PD.

      During the COVID-19 pandemic, nucleic acid detection, especially qPCR, became critical to rapidly diagnosing infectious diseases. Recently, PCR- and qPCR-based methods were widely used for pneumococcal serotyping. Seven consecutive quadruple PCR reactions designed for the 29 most common pneumococcal serotypes in ABCs were employed for serotyping 421 IPD isolates, and 54.3% (229/421) of the isolates were successfully identified to serotypes, and 40.9% (172/421) of the strains were identified to the serogroup[19]. Subsequently, mqPCR-based pneumococcal serotyping strategies were recommended for ABCs serotype surveillance[21]. This mqPCR typing method was applied for 64 serotypes, of which 34 could be typed into individual serotypes and the remaining 30 into 13 small serogroups. Pholwat et al. developed a TaqMan array card for pneumococcal serotyping, and 53 sequence-specific PCR reactions were performed to identify 74 serotypes/serogroups[31]. Sakai et al. developed 11 single-plex qPCR serotyping assays, which, when combined with past studies of qPCR-based serotyping systems, expanded the coverage of serotypes to 94 serotypes. However, this study did not clarify the correspondence between 94 serotypes of pneumococci and the serotyping assays, nor did it establish a systematic analysis and result interpretation scheme, making it difficult to promote its application[32]. The nanofluidic real-time PCR serotyping method, a high-throughput serotyping method based on qPCR, was also employed for pneumococcal serotyping[33,34]. A total of 29 primer pairs were selected for the assay to cover 50 serotypes, 17 individual serotypes, and 33 serotypes in 12 serogroups[33]. This nanofluidic method was also designed for serotyping PCV-associated serogroups 6, 18, and 22, which are pneumococci with highly similar cps loci[35]. However, the reported qPCR-based pneumococcal serotyping methods currently lack systematic analysis and have limited coverage of serotypes, especially for NVTs. Several countries and regions, such as U.S., Latin-Amer, and Asian counties, have established their pneumococcal serotyping schemes based on the prevalence of predominant serotypes, seeking to cover more prevalent serotypes with fewer reactions[23,24]. However, there is a lack of a national surveillance network for IPD in China, and the distribution of pneumococcal serotypes in China is not adequately known. The serotype prevalence and VTs coverage varied by age group, source, and region. In Zhongjiang County[36], where the PCV13 vaccination rate was meager in 2018–2020, the proportion of non-PCV13 type increased remarkably with an increase in age, 28.7% at 2 years of age to 58.1% at ≥ 60 years of age. Therefore, enhanced detection and surveillance of all serotypes, including VTs, and NVTs, is vital for preventing and controlling PD. We accordingly extended and modified the previously reported typing assays to establish a typing system that covers the majority of pneumococcal serotypes.

      The pneumococcal cps loci sequences are the genetic basis for PCR-based serotyping methods. The genetic analysis of pneumococcal cps loci sequence has already been studied[37]. When compared with the previous analysis, this study focused on the selection and modification of serotyping target sequences and the establishment of serotyping assays. When selecting specific targets, wzy and wzx were first considered pneumococcal serotyping targets because they were required to be serotype-specific, especially wzy[38]. When the serogroup/serotype was hard to distinguish with wzy and wzx, the presence or absence of genes in serotype-specific regions in cps loci or the difference in their sequence in gene structure analysis for further typing. With this sequential flow of serotyping, a pneumococcal serotyping process covering 97 serotypes was formed. To the best of our knowledge, this is the first time that a phylogenetic tree of the cps loci sequence, covering the sequences of 94 pneumococcal serotypes, was used in combination with gene structure to investigate the differences in gene composition and sequence identity in different serotypes and to select suitable serotyping targets. In addition, in this study, we added five pneumococcal serotypes cps loci sequences (6C, 6D, 6F, 6G, and 35D) to the previous gene structure analysis. Regrettably, serotypes 6E, 6H, and 11E could not be included in the analysis of phylogeny and gene structure because these serotype strains were not available in our laboratory, and their cps loci sequence could not be accessed from the public databases.

      Another contribution of this study is the establishment and modification of a qPCR-based serotyping scheme, which proposed a series of assays covering 97 pneumococcal serotypes (containing 6E, a genetically defined entity). A total of 73 serotyping target sequences were involved, and 27 novel qPCR serotyping target sequences were added to extend the previously reported 46 qPCR serotyping assays by ABCs[21]. Moreover, 97 pneumococcal serotypes were typed into 72 serotypes or serogroups, of which 52 could be typed as individual serotypes, and the remaining 45 serotypes were identified as 20 sub-serogroups. Critically, the systematic reorganization and analysis enabled the serotyping logic and the interpretation of typing results to be more precise than that in any of the previous reports. Genetic structure analysis and the graphs of pneumococcal serotyping interpretation facilitate the reading of results for the numerous serotypes and assays. Furthermore, the covers of serotypes can be extended in this case. Moreover, on the basis of the increased serotype coverage, some strains that could be identified as serogroups were further identified as smaller serogroups and even as individual serotypes. The strains that could be identified as serogroup18A/18B/18C/18F by the previous assays could be further typed to 18A, 18F, or 18B/18C with two novel serotyping assays (i.e., wcxM, and wciX). Unlike the pneumococcal serogroup 18 serotyping scheme established by Downs et al.[35], which relies on four targets, contains wciW (18A/B/C), wciX (18B/C/F, and 18C/F), and wcxM (16F/18F/28AF), pneumococcal serogroup 18 serotyping in this study followed the use of wzy to select for serogroup18 strains before differentiating 18A, 18F, and 18B/C by wciX (18B/18C/18F) and wcxM (18F). Serogroup 18 is a Wzy-dependent serotype, and wzy has superiority in serotyping specified and broad application. On the other hand, this 18F wcxM specifically target fragment can be used as a separate identification target of serotype 18F without cross-reactivity with other serogroups. The disadvantage is that the serotyping assay of serogroup18 in this study has not separated 18B and 18C completely. Overall, the additional novel serotyping target sequence added to this study has increased the coverage of serotypes and the number of accurately identified individual serotypes. The number of serotypes covered was increased by 33, and 18 of them could be accurately identified as serotypes.

      The performance of the 27 novel serotyping assays in pneumococcal serotyping applications is another key to their more widespread application. The LODs ranged from 1 copy/reaction to 10 copies/reaction for all 27 novel additional assays established in this study, except for No. 69 (41A/41F) with a strains LOD of 1.19 × 102 copies/reaction. The LODs were equal to those previously reported[21,31], demonstrating the excellent sensitivity of the typing assay in this study. A panel of 90 serotypes of pneumococcal reference was typed. All pneumococcal strains were typed correctly. The 27 novel additional serotyping assays expanded the identified serotypes from 66 to all 90 strains. The number of serotypes that could be typed into individual serotypes was increased from 38 serotypes to 50 serotypes. The analyses of reference strains revealed that the pneumococcal serotyping assays were specific and accurate for pneumococcal serotyping. The relatively rare serotypes were detected at levels as low as 5% in the coexistence simulation samples, demonstrating the ability of the method to detect multiple serotypes.

      A total of 97 pneumococcal could be typed in this study. Limited by the resource of strains, 7 serotypes (including the serotypes 6D, 6E, 6F, 6H, 11E, 33C, and 35D) have not been typed by isolates. However, our pneumococcal serotyping assays could cover these serotypes by sequence analyses of pneumococcal cps loci. Except for the serotype 33C, the serotyping targets sequence used for serotyping the remaining 6 serotypes shared gene fragments with the existing strains. For instance, serotype 6E shares a serotyping target sequence with serotypes 6B and 6G, which could be identified as serogroup 6B/6E/6G by Primer/Probe No. 6 (6A/6B/6C/6D/6E/6F/6G/6H, wciP), No. 7 (6A/6B/6E/6F/6G/6H, wciN), and No. 9 (6B/6D/6E/6G, wciP). Serotype 6D was typed with the Primer/Probe No.6 (6A/6B/6C/6D/6E/6F/6G/6H, wciP), No. 8 (6C/6D, wciN), and No. 9 (6B/6D/6E/6G, wciP). These serotyping target sequences were with the same for 6A/6B/6C/6D/6E/6F/6G/6H, 6C/6D, and 6B/6D/6E/6G, respectively. The specificity of No. 57 (33C, wzy) serotyping assay was tested by a recombinant reference plasmid containing a fragment of the target sequence for serotype 33.

      The selection of serotyping targets relied on the database of cps loci sequences, which were downloaded from the public database or previously reported. Although the pneumococcal cps loci sequence is generally considered to be conserved; however, slight modifications of the cps loci, such as the accumulation of point mutations, insertions, or deletions of genes, may cause alterations in the serotypes. The database of pneumococcal cps loci sequence and the pneumococcal serotyping target sequences might need to be continuously expanded and modified to meet the needs of future pneumococcal serotyping.

      The pneumococcal serotyping assays established in this study were based on single-weight qPCR reactions, and the evaluation of the integration into a continuous multiplex qPCR assay system has not been completed. Subsequent analyses will continue to optimize the test protocol with a higher throughput and serotype coverage by combining nanofluidic gene chips and MeltArray[39,40]. After obtaining the representative prevalence and carriage surveillance data, we aim to develop a serial multiplex qPCR assay protocol that meets the prevalence characteristics of pneumococcal serotypes in China based on the prevalence of pneumococcal serotypes in China. Another limitation of this study is that the evaluated strains of specificity may be insufficient, and the designed assay was not evaluated for detecting S. pneumoniae in human clinical samples, such as nasopharyngeal samples, sputum, blood, and CFS.

      As we know that 90 strains of isolates may not be adequate, we have mentioned it as a limitation of the study.

      Despite these limitations, our current findings and reports expand the current qPCR scheme and offer a practical strategy for pneumococcal serotyping.

    • In conclusion, a total of 27 novel qPCR assays were established and modified to analyze 97 pneumococcal serotypes.

    • Figure S1.  SNP-based phylogeny for wzy and wzx. Left: A SNP-based phylogeny for wzy; Right: A SNP-based phylogeny for wzx. All 97 serotypes of pneumococci (expect serotype 3) have wzy and wzx. Serotype 6E and 6H were not included in these two phylogenetic tree due to partial gene sequences in the NCBI database.

      Figure S2-1.  Amplification curve and standard curve of recombinant standard plasmid (A)–(O) Recombinant standard plasmids corresponding to 10AC, 16A, 17A, 18F, 19C, 24BF, 28A, 29, 32AF, 35AC42, 35F34, 41A, 41F, 45, 47A amplified target fragments, respectively Amplification curves and standard curves (run on Roche LightCycler® 480, Switzerland).

      Figure S2-2.  Amplification curves and standard curves of recombinant standard plasmids (1)–(12) Amplification curves and standard curves of recombinant standard plasmids corresponding to 7BC40, 10B, 11F15ABCF, 12ABC46, 18BCF, 19BC, 25AF, 27, 33C, 33BD, 36, 43 amplified target fragments, respectively (run on BIOER gene9660, China).

参考文献 (40)
补充材料:
22340+Supplementary Materials.pdf

目录

    /

    返回文章
    返回
